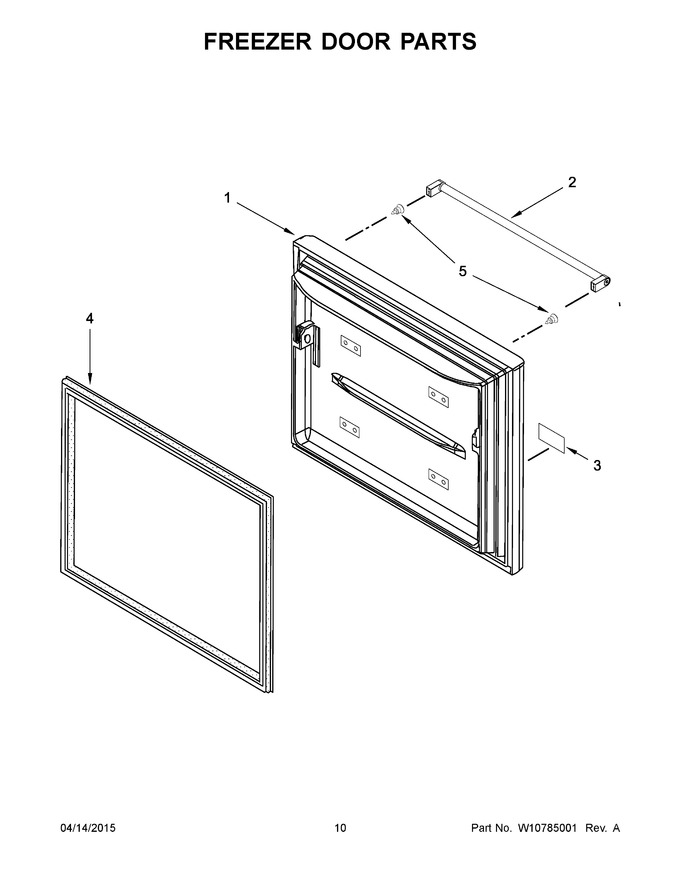

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109214WQ | Door, Freezer (white) (Replaces: 13109214W) |
|
$ 908.60 | |||||
| 2 | W11497229 | Handle, Door (stainless) (Replaces: W10774991) |
|
Immediately | $ 177.31 | ||||
| 3 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 72.57 | ||||
| 4 | W10443315 | Gasket, Door (white) (Replaces: W10571962) |
|
$ 193.98 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 1A | 13109214BQ | Door, Freezer (black) (Replaces: 13109214B) |
|
$ 894.88 | |||||
| 4A | WPW10436250 | Gasket, Door (black) (Replaces: W10436250) |
|
Immediately | $ 347.99 |
