SELECT A DIAGRAM
New Model Search:

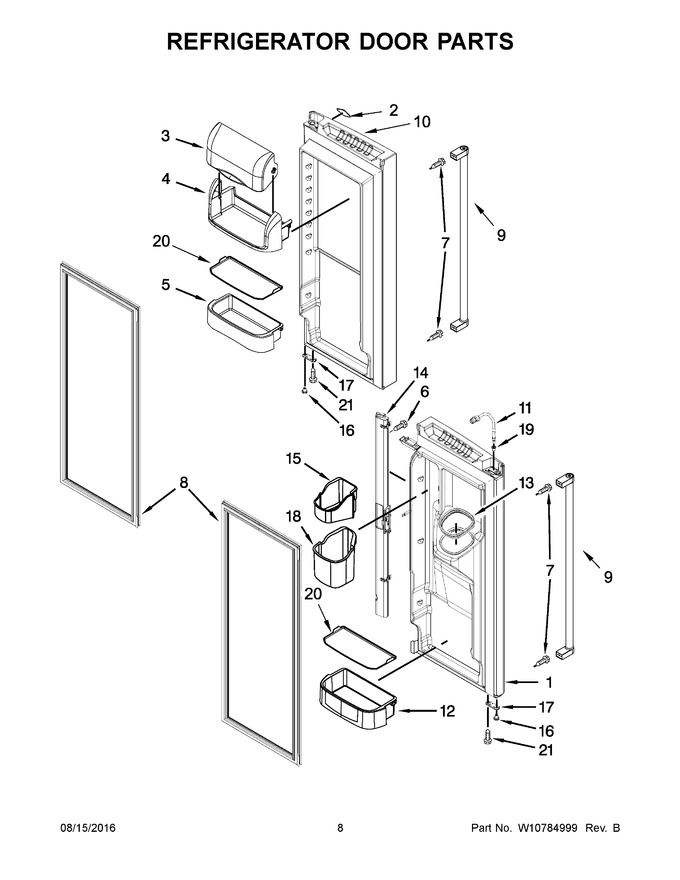

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10758814 | Door, Left (white) |
|
- | |||||
| 2 | W10909682 | Nameplate (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10443236) |
|
$ 312.66 | |||||
| 9 | W11483532 | Handle, Door (stainless) (Replaces: W10775000) |
|
Immediately | $ 178.01 | ||||
| 10 | W10758799 | Door, Right (white) |
|
- | |||||
| 11 | W10275942 | Tube, Water |
|
Immediately | $ 120.27 | ||||
| 12 | WPW10119846 | Bucket, Gallon (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 12722813W) |
|
$ 341.27 | |||||
| 15 | W10187453 | Bucket, Door Upper (Replaces: 12977401) |
|
$ 73.08 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 18 | 12977501 | Bucket, Door Lower |
|
- | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 20 | W11510593 | Gripper, Medium (Replaces: W10450018) |
|
Immediately | $ 17.43 | ||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 10A | W10758800 | Door, Right (black) |
|
- | |||||
| 10B | 13107868S | Door, Right (stainless) |
|
- | |||||
| 14A | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 342.08 | |||||
| 14B | WP12722813AP | Mullion, Door (grey) (Replaces: 12722813AP) |
|
$ 340.89 | |||||
| 16A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 16B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 17B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 1A | W10758815 | Door, Left (black) |
|
- | |||||
| 1B | 13107874S | Door, Left (stainless) |
|
- | |||||
| 20A | W11510594 | Gripper, Gallon (Replaces: W10450019) |
|
$ 20.01 | |||||
| 8A | W11378944 | Gasket, Door (black) (Replaces: W10435969) |
|
Immediately | $ 187.59 | ||||
| 8B | W10830055 | Gasket, Door (grey) (Replaces: W10443238) |
|
Immediately | $ 229.10 |
