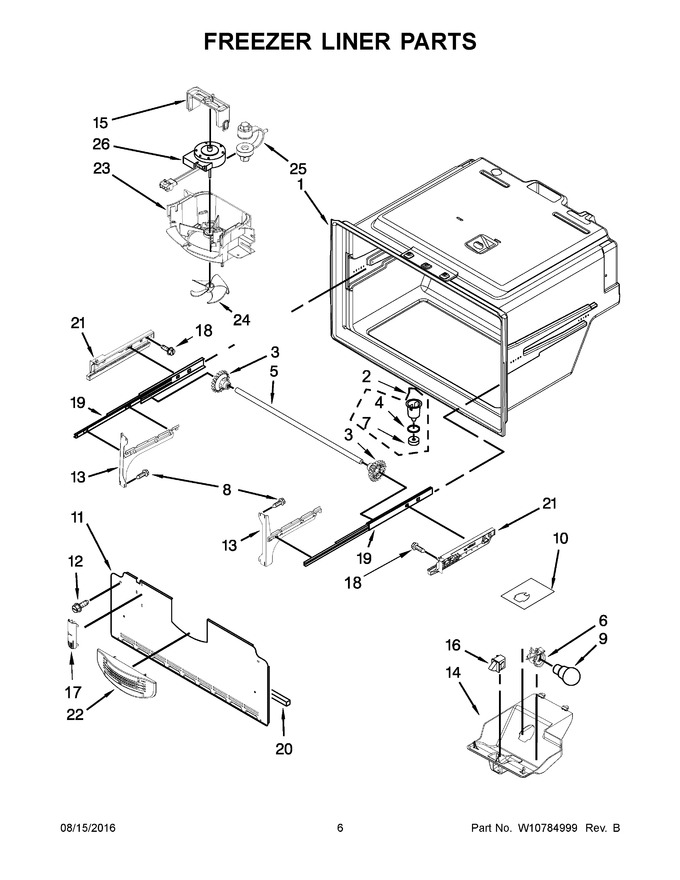

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 51.50 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 4 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 5 | W11028221 | Shaft, Rack (Replaces: W10802332) |
|
$ 33.24 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 9 | W11338583 | Lamp, Led (Replaces: W10565137) |
|
Immediately | $ 107.21 | ||||
| 10 | W11469652 | Foil, Housing (Replaces: W10277466) |
|
$ 23.29 | |||||
| 11 | W10308421 | Cover, Evaporator |
|
$ 291.06 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330994 | Bracket, Door Slide (left Hand) (Replaces: W10330994) |
|
Immediately | $ 169.02 | ||||
| 14 | W11434460 | Module, Light (Replaces: W10315248) |
|
Immediately | $ 37.26 | ||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 12.24 | ||||
| 16 | W11445850 | Switch, Light (Replaces: 12466111SP) |
|
Immediately | $ 52.62 | ||||
| 17 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 18 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 19 | W11658403 | Slide, Drawer (Replaces: 13055901) |
|
Immediately | $ 225.25 | ||||
| 20 | W11159728 | Gasket (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | W10858097 | Adapter (left Hand) (Replaces: W10544957) |
|
$ 121.95 | |||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 124.16 | |||||
| 23 | W11700329 | Shroud, Evaporator (Replaces: 12951401) |
|
Immediately | $ 61.20 | ||||
| 24 | WP67006337 | Blade, Fan (Replaces: 12986101) |
|
Immediately | $ 90.45 | ||||
| 25 | W11676465 | Grommet, Fan Motor (Replaces: 12951101) |
|
Immediately | $ 15.56 | ||||
| 26 | W10850438 | Motor, Evaporator (Replaces: W10257096) |
|
Immediately | $ 306.39 | ||||
| 13A | WPW10330995 | Bracket, Door Slide (right Hand) (Replaces: W10330995) |
|
Immediately | $ 340.61 | ||||
| 21A | W10857648 | Adapter (right Hand) (Replaces: W10544958) |
|
$ 124.77 |
