SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

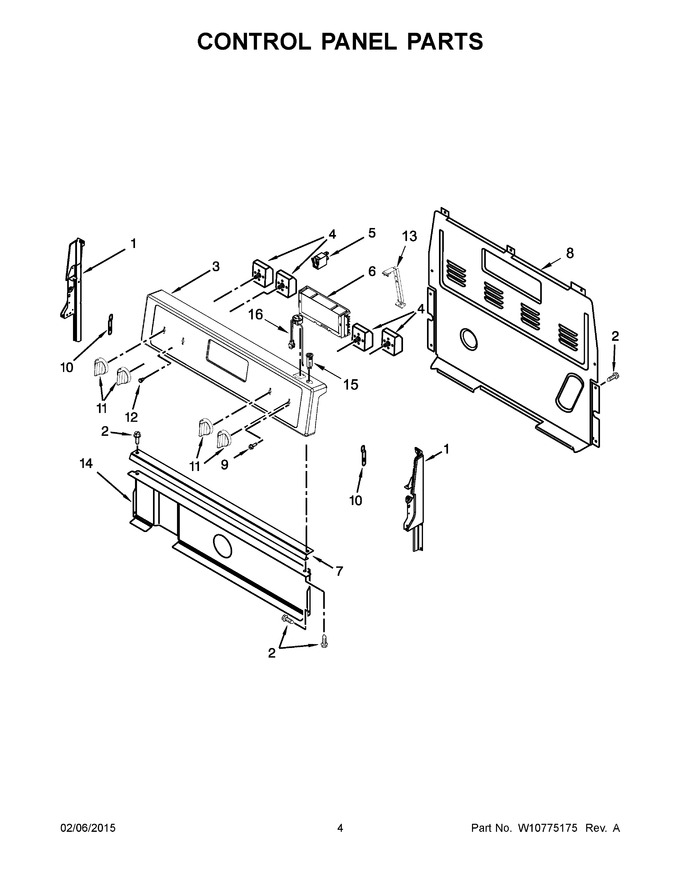

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W10714866 | Panel, Console (white) |
|
Immediately | $ 152.93 | ||||
| 4 | WP3148952 | Switch, Infinite (yellow) (right Front And Left Rear) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | WP8523265 | Hot Surface Indicator (Replaces: W10432504) |
|
Immediately | $ 91.76 | ||||
| 6 | W10803945 | Control, Electric (lcc 190) (white) (Replaces: W10734607) |
|
$ 493.36 | |||||
| 7 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 8 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 11 | W10853029 | Assembly, Control Knob (white) (Replaces: W10676214) |
|
Immediately | $ 34.44 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 13 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 14 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 15 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 16 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 100.00 | ||||
| 11A | W10836470 | Assembly, Control Knob (black) (Replaces: W10676213) |
|
Immediately | $ 34.28 | ||||
| 15A | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 16A | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 | ||||
| 1A | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1B | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1C | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 3A | W11252146 | Panel, Console (stainless) (Replaces: W10715409) |
|
$ 434.38 | |||||
| 4A | WP3149400 | Switch, Infinite (left Front And Right Rear) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 6A | W11122536 | Control, Electric (lcc 190) (stainless) (Replaces: W10734605) |
|
Immediately | $ 452.69 |
