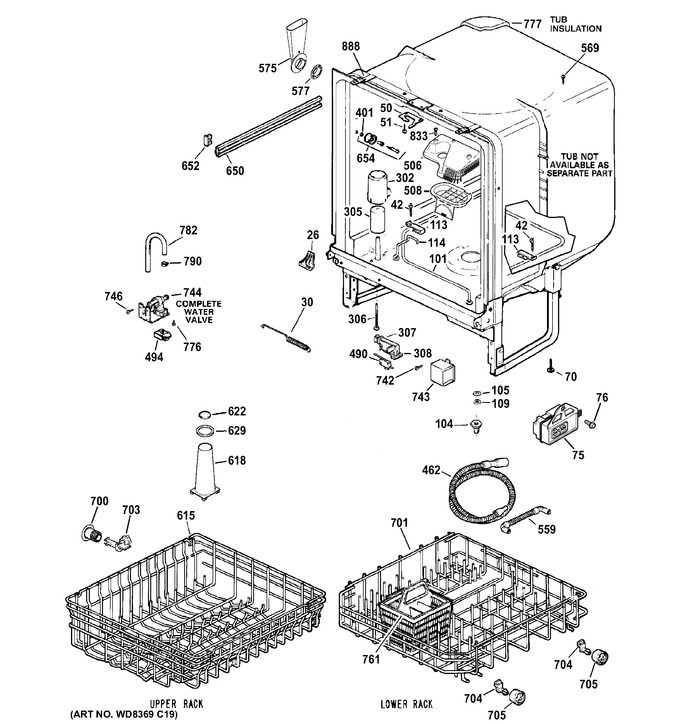

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 75 | WD21X21814 | Module Asm |
|
- | |||||
| 76 | WD02X10208 | Scr 10-32 Tt Hxw 7/16 S |
|
- | |||||
| 113 | WD01X10086 | Support Calrod Assy |
|
- | |||||
| 114 | WD1X1472 | Support Heater |
|
- | |||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 462 | WG04F01563 | Hose Drain (Replaces: WD24X10014) |
|
Immediately | $ 68.11 | ||||
| 490 | WG04F01056 | Switch Flood (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 559 | WD24X10041 | Hose Chamber |
|
- | |||||
| 618 | WG04L01923 | Tower Upper Rack (Replaces: WD28X10367) |
|
$ 17.47 | |||||
| 700 | WG04A01309 | Stud & Roller Asm - Uppe (Replaces: WD12X10269) |
|
$ 6.35 | |||||
| 703 | WD12X10266 | Stud Roller - Upper |
|
- | |||||
| 704 | WG04L01910 | Stud Roller - Lower (Replaces: WD12X10265) |
|
$ 38.75 | |||||
| 744 | WG03F00838 | Valve Water Inlet (Replaces: WD15X10014) |
|
Immediately | $ 65.23 | ||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 790 | WD01X10065 | Clamp Hose |
|
- |
