SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment

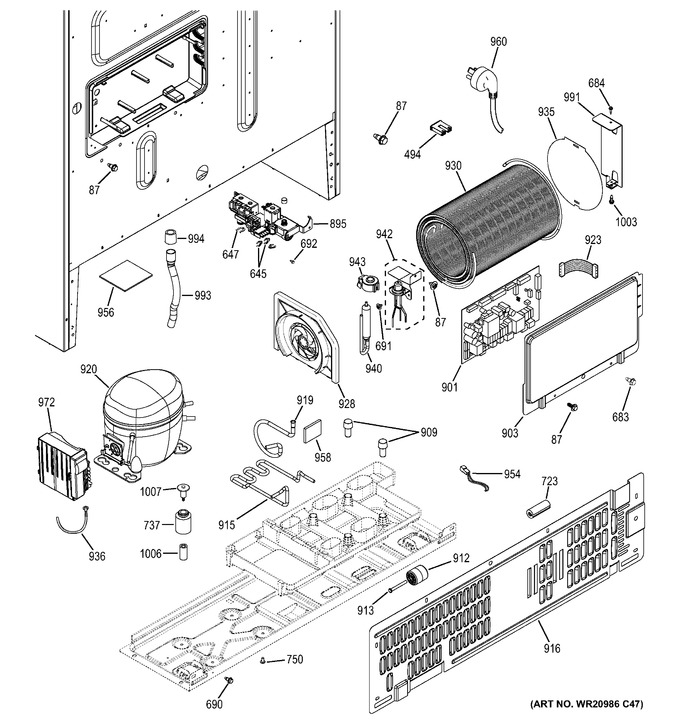

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
87	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
645	WR01X11040		Quick Clip Conn 5/16		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
683	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
690	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
691	WR01X10897		Scr 12-24tt Bht20 .700 S		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
723	WR14X22365		Grommet Tubing Slit		Appelez-nous	-
737	WR02X20884		Grommet Compressor		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
895	WR57X20873		Valve Double Iw Asm		Appelez-nous	-
901	WR55X20881		Board Asm Main Control		Appelez-nous	-
903	WR02X13714		Cover Mainboard		Appelez-nous	-
909	WR02X13668		Support Condenser		Appelez-nous	-
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
915	WR87X20887		Jumper Discharge Eei		Appelez-nous	-
916	WR82X10127		Cover Access		Appelez-nous	-
919	WR87X20888		Jumper Suction Eei		Appelez-nous	-
920	WR87X20921		Inverter Compressor		Appelez-nous	-
923	WR55X24526		Harness Personality		Appelez-nous	-
928	WR60X23363		Fan Gasket Asm		Appelez-nous	-
930	WR84X10115		Condenser Asm Formed		Appelez-nous	-
935	WR17X13045		Baffle Cond Air		Appelez-nous	-
936	WR23X20886		Harness Ground		Appelez-nous	-
940	WR86X10089		Dryer Filter		Appelez-nous	-
942	WR86X10094		Valve Body Asm		Appelez-nous	-
943	WR86X10091		Coil 3 Way Valve		Appelez-nous	-
954	WR23X10768		Harness Doghouse		Appelez-nous	-
956	WR02X13713		Pad Mastic		Appelez-nous	-
958	WR02X13724		Mastic Sound Deadening		Appelez-nous	-
960	WR23X24389		Harness Power Cord		Appelez-nous	-
972	WR55X23123		Inverter		Appelez-nous	-
991	WR02X13622		Bracket Condenser		Appelez-nous	-
993	WR02X13710		Tube Trap Drain		Appelez-nous	-
994	WR01X11006		Check Valve		Appelez-nous	-
1003	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
1006	WR01X20885		Stud Mtg Compressor		Appelez-nous	-
1007	WR01X20883		Scr 10-32 Tr 1/2 S		Appelez-nous	-
	WG03A02987		Pan Veg Asm Bis   (Replaces: WG03L07847)				$ 111.73
	WG03L06532		Slide Upper Basket				$ 68.39
	WG03F08927		Door Foam Asm Ff Lh Nd   (Replaces: WG03L06686)			Immediately	$ 1,132.90
	WG03A01698		Bracket Slide Lh				$ 26.16
	WG03L07615		Ps Fz Door Cafe Ss				$ 664.04
	WG03F04056		Ctrl Lh Door Side Asm Sl				$ 95.46
	WG03F04887		Inverter   (Replaces: WG03F04840)			Immediately	$ 411.43
	WG03F04854		Valve Double Iw Asm				$ 160.86
	WG03L09517		Ice Maker Asm   (Replaces: WG03F04890)			Immediately	$ 209.83
	WG03F05740		Kit Actualizaciﾓn De Software + Vent.				$ 196.47
	WG03F05993		Board Asm Main Control				$ 385.15
	WG03L05278		Poignee Asm.				$ 134.59
	WG03L05450		Hinge Endcap Asm Dgy				$ 76.30
	WG03A02987		Pan Veg Asm Bis   (Replaces: WG03L05606)				$ 111.73
	WG03L09920		Porte Droit De Refrig. Asm.   (Replaces: WG03L05835)				$ 749.56

    View Diagram in Separate Window       Print Part List
