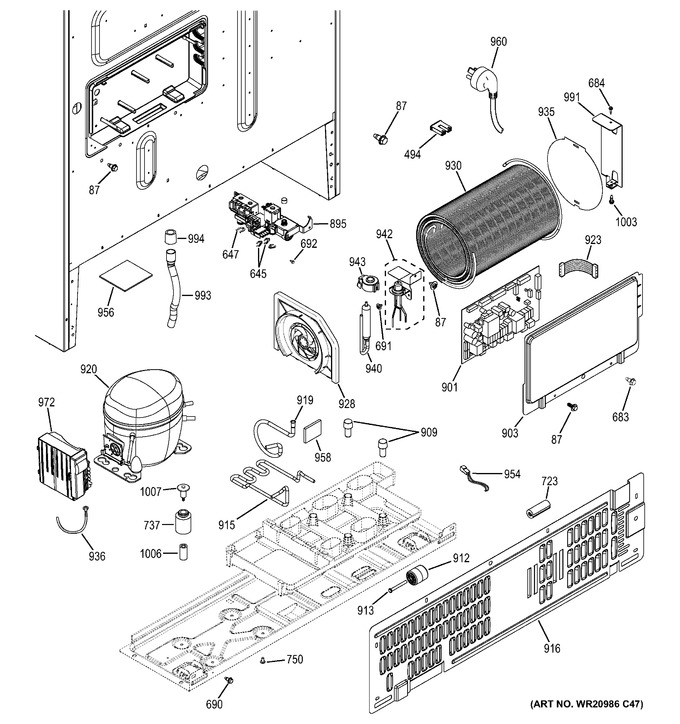

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
87	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.57
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
645	WR01X11040		Quick Clip Conn 5/16		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
683	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
690	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
691	WR01X10897		Scr 12-24tt Bht20 .700 S		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
723	WR14X22365		Grommet Tubing Slit		Appelez-nous	-
737	WR02X20884		Grommet Compressor		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
895	WR57X20873		Valve Double Iw Asm		Appelez-nous	-
901	WR55X20881		Board Asm Main Control		Appelez-nous	-
903	WR02X13714		Cover Mainboard		Appelez-nous	-
909	WR02X13668		Support Condenser		Appelez-nous	-
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
915	WR87X20887		Jumper Discharge Eei		Appelez-nous	-
916	WR82X10127		Cover Access		Appelez-nous	-
919	WR87X20888		Jumper Suction Eei		Appelez-nous	-
920	WR87X20921		Inverter Compressor		Appelez-nous	-
923	WR55X24526		Harness Personality		Appelez-nous	-
928	WR60X23363		Fan Gasket Asm		Appelez-nous	-
930	WR84X10115		Condenser Asm Formed		Appelez-nous	-
935	WR17X13045		Baffle Cond Air		Appelez-nous	-
936	WR23X20886		Harness Ground		Appelez-nous	-
940	WR86X10089		Dryer Filter		Appelez-nous	-
942	WR86X10094		Valve Body Asm		Appelez-nous	-
943	WR86X10091		Coil 3 Way Valve		Appelez-nous	-
954	WR23X10768		Harness Doghouse		Appelez-nous	-
956	WR02X13713		Pad Mastic		Appelez-nous	-
958	WR02X13724		Mastic Sound Deadening		Appelez-nous	-
960	WR23X24389		Harness Power Cord		Appelez-nous	-
972	WR55X23123		Inverter		Appelez-nous	-
991	WR02X13622		Bracket Condenser		Appelez-nous	-
993	WR02X13710		Tube Trap Drain		Appelez-nous	-
994	WR01X11006		Check Valve		Appelez-nous	-
1003	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
1006	WR01X20885		Stud Mtg Compressor		Appelez-nous	-
1007	WR01X20883		Scr 10-32 Tr 1/2 S		Appelez-nous	-
	WG03F05979		Board Asm Main Control		Appelez-nous	-
	WG03L05701		Slide Holder Fz Rh				$ 52.97
	WG03L05702		Slide Lower Fz Rh			Immediately	$ 87.49
	WR01F01730		Sensor Temp Ff			Immediately	$ 14.66
	WG03L05703		Slide Holder Fz Lh				$ 59.78
	WG03L05704		Slide Lower Fz Lh			Immediately	$ 87.49
	WG03L05842		Cover Access		Appelez-nous	-
	WG03A01700		Bracket Slide Fz Rh				$ 70.96
	WG03L07634		Ps Fz Door Dg Ss				$ 1,167.60
	WG03A01701		Bracket Slide Fz Lh				$ 66.38
	WG03F01804		Thermostat Defrost Fz			Immediately	$ 30.02
	WG03F06676		Kit ActualizaciËn De Software + Vent.   (Replaces: WG03F04082)			Immediately	$ 114.44
	WG03F04887		Inverter   (Replaces: WG03F04840)			Immediately	$ 370.29
	WG03F04932		Basket Upper Full Asm Fz				$ 111.17
	WG03F04942		Fan Gasket Asm			Immediately	$ 147.56
	WG03F05706		Refrigerator Main Control Board				$ 569.26
	WG03F05740		Ap5 Sum Board Nidec Ff Fan Kit				$ 196.47
	WG03L09517		Icemaker Asm   (Replaces: WG03F05973)			Immediately	$ 188.85

    View Diagram in Separate Window       Print Part List
