Diagram # Part Number Description Series Availability Ships Price Add to Cart
87 WR01A00683 Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588) Special Order $ 3.97

494 WD1X1459 Insulator Hsng Term Appelez-nous -
647 WR01X11041 Quick Clip Connector 1/4 Appelez-nous -
683 WR01X10602 Scr 8-32 Ab Ihws 3/8 S Appelez-nous -
684 WR01X10635 Scr 8-32 Ca Ihxw .625 S Appelez-nous -
690 WZ05X0158 Screw 8-32x3/8 Grd Scr Appelez-nous -
692 WZ04X0416 Scr 8-18 Ab Hxw 3/4 Appelez-nous -
723 WR14X22365 Grommet Tubing Slit Appelez-nous -
736 WR01X20883 Scr 10-32 Tr 1/2 S Appelez-nous -
737 WR02X20884 Grommet Compressor Appelez-nous -
741 WR01X20885 Stud Mtg Compressor Appelez-nous -
750 WR1X1786 Scr 10-32 Tr 1/2 Appelez-nous -
900 WG03F01801 Valve Water Iso Asm   (Replaces: WR55X11128) Special Order $ 79.46

901 WR55X24043 Board Asm Main Control Appelez-nous -
903 WR02X13714 Cover Mainboard Appelez-nous -
909 WR02X13668 Support Condenser Appelez-nous -
912 WR02X13685 Wheel Appelez-nous -
913 WR01X11008 Axle Wheel Appelez-nous -
915 WR87X20887 Jumper Discharge Eei Appelez-nous -
916 WR82X10127 Cover Access Appelez-nous -
919 WR87X20888 Jumper Suction Eei Appelez-nous -
920 WR87X20921 Inverter Compressor Appelez-nous -
928 WR60X23363 Fan Gasket Asm Appelez-nous -
930 WR84X10115 Condenser Asm Formed Appelez-nous -
935 WR17X13045 Baffle Cond Air Appelez-nous -
940 WR86X10089 Dryer Filter Appelez-nous -
942 WR86X10094 Valve Body Asm Appelez-nous -
943 WR86X10091 Coil 3 Way Valve Appelez-nous -
954 WR23X10768 Harness Doghouse Appelez-nous -
956 WR02X13713 Pad Mastic Appelez-nous -
958 WR02X13724 Mastic Sound Deadening Appelez-nous -
960 WR23X24389 Harness Power Cord Appelez-nous -
972 WR55X23123 Inverter Appelez-nous -
991 WR02X13622 Bracket Condenser Appelez-nous -
993 WR02X13710 Tube Trap Drain Appelez-nous -
994 WR01X11006 Check Valve Appelez-nous -
1003 WR01X10618 Scr 8-18 Tpt 1/4 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

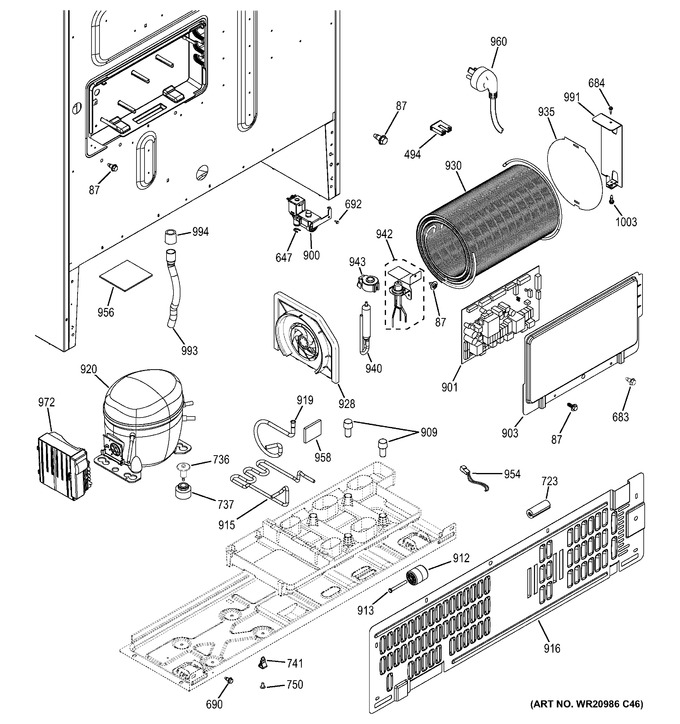

Diagram for PYE22PSHGSS
