SELECT A DIAGRAM

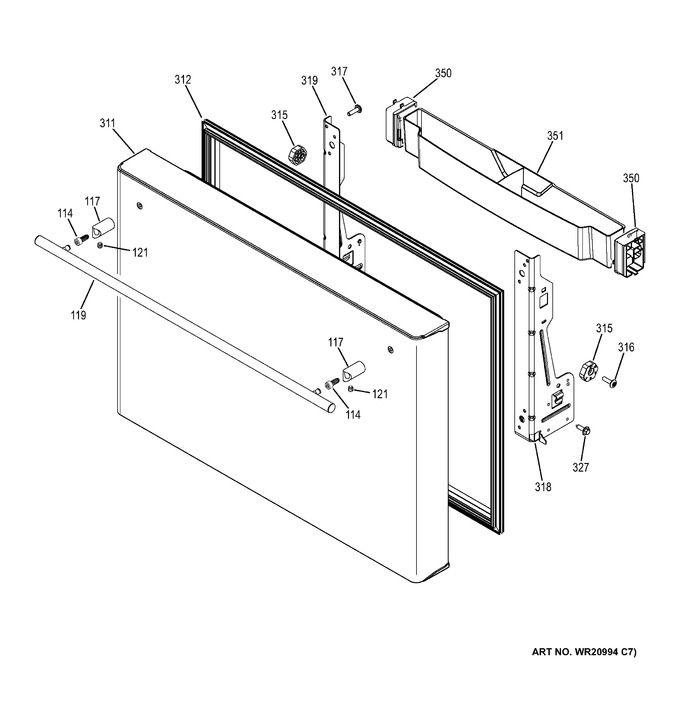

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
114	WR01X23378		Fastener Door Handle		Appelez-nous	-
117	WR02X23376		Stand Off		Appelez-nous	-
119	WR12X23384		Handle Euro Fz Asm		Appelez-nous	-
121	WR01X23379		Set Screw		Appelez-nous	-
311	WR78X23988		Door Foam Asm Fz Mngram		Appelez-nous	-
312	WR14X10376		Gasket Fz Dgy Es		Appelez-nous	-
315	WR02X13627		Cam Vert Adjustment		Appelez-nous	-
316	WR01X11010		Scr 1/4-20 Gx Trt 7/8 S		Appelez-nous	-
317	WR01X11049		Scr 1/4-20 Hxw 7/8 S		Appelez-nous	-
318	WR02X24132		Bracket Door Fz Rh		Appelez-nous	-
319	WR02X24133		Bracket Door Fz Lh		Appelez-nous	-
327	WR01X11011		Scr1/4-20 Hxw 3/4s		Appelez-nous	-
350	WG03A01594		Support Bin Fz   (Replaces: WR02X13628)			Immediately	$ 19.06
351	WG03A00267		Bin Freezer   (Replaces: WR71X11038)				$ 52.50

    View Diagram in Separate Window       Print Part List
