View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Door Parts

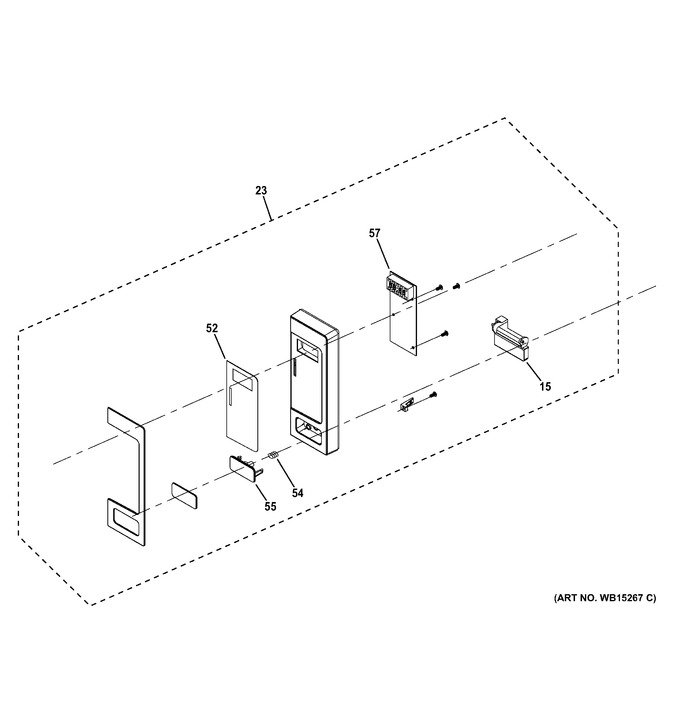

2 - Control Parts
3 - Oven Cavity Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | WB02X21339 | Door Lever |
|
- | |||||
| 23 | WB56X25219 | Control Panel Asm |
|
- | |||||
| 52 | WB07X21326 | Overlay |
|
- | |||||
| 54 | WB10X21333 | Spring, Door Button |
|
- | |||||
| 55 | WB03X21287 | Door Button |
|
- | |||||
| 57 | WB27X21340 | Pcb Asm |
|
- |
