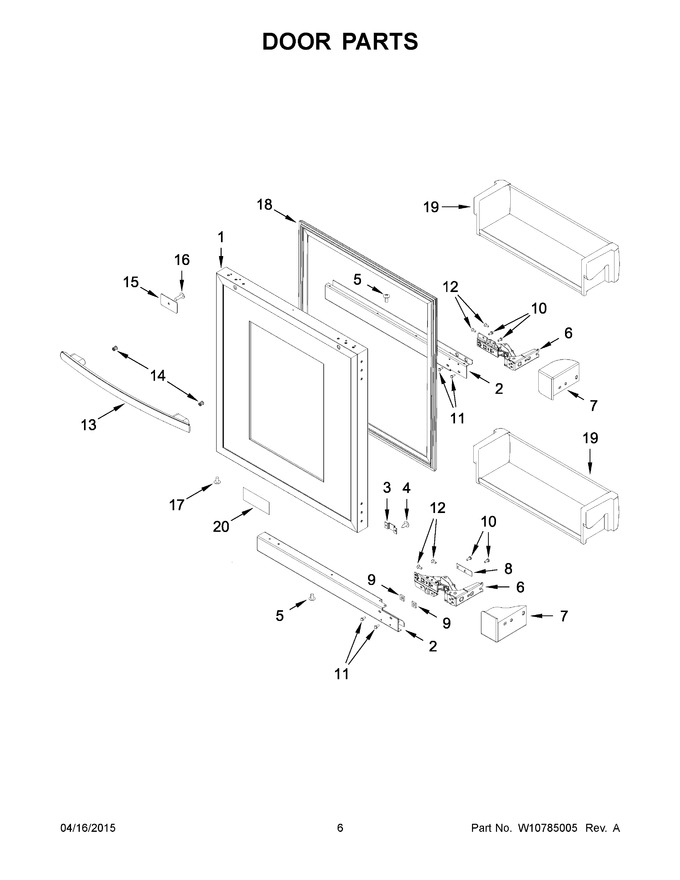

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10800037		Glass Door Assembly (right Hinge)				$ 617.55
2	W10800045		Latch Hinge Fix Plate Top Right & Bottom Left		Appelez-nous	-
3	W10800047		Plate Mount Switch		Appelez-nous	-
4	W10319185		Screw		Appelez-nous	-
5	W10319187		Screw				$ 73.51
6	W10622809		Assembly, Hinge Top Right & Bottom Left				$ 285.30
7	W10622811		Cover, Hinge Top Right & Bottom Left				$ 126.03
8	W10780350		Spacer, Bottom Hinge		Appelez-nous	-
9	W10780347		Spacer, Mounting Hinge		Appelez-nous	-
10	W10319189		Screw				$ 71.14
11	W10622817		Screw				$ 25.67
12	W10780349		Screw				$ 52.00
13	W10622019		Handle			Immediately	$ 360.90
14	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 19.33
15	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
16	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
17	W10319183		Screw		Appelez-nous	-
18	W11625076		Gasket   (Replaces: W10797384)				$ 109.21
19	W10175958		Door Bin		Appelez-nous	-
20	WPW10214168		Name Plate   (Replaces: W10292471)				$ 85.95
1A	W10800039		Glass Door Assembly (left Hinge)				$ 586.68
2A	W10800046		Latch Hinge Fix Plate Top Left & Bottom Right		Appelez-nous	-
6A	W10622810		Assembly, Hinge Top Left & Bottom Right				$ 287.06
7A	W10622812		Cover, Hinge Top Left & Bottom Right				$ 126.03
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10800048		Overlay Installation Parts		Appelez-nous	-
