01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10755020		Installation Instructions		Appelez-nous	-

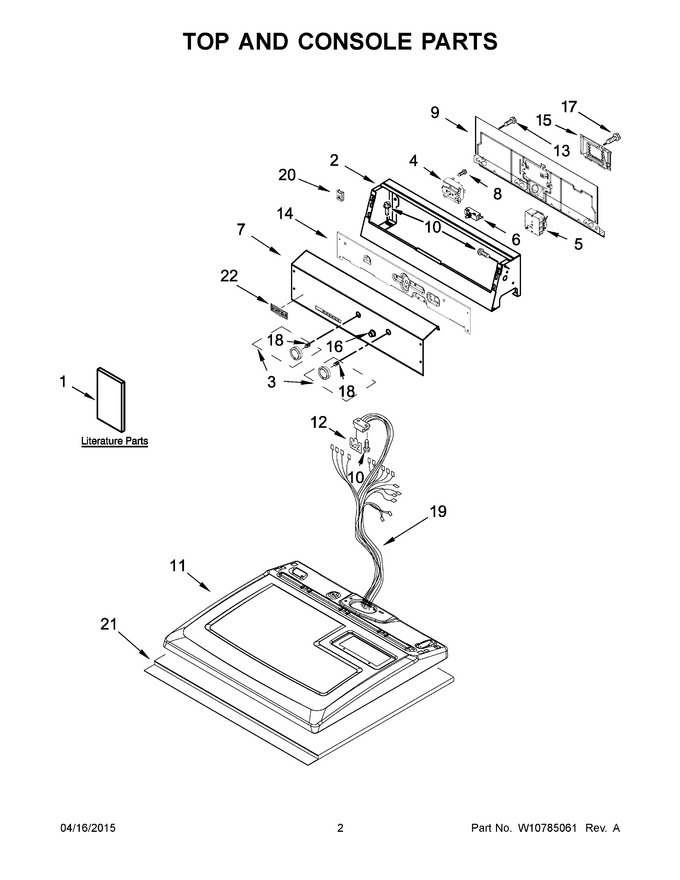

2	W11124005		Console   (Replaces: W10461095)				$ 238.42
3	W10771940		Assembly, Control Knob (grey)				$ 53.40
4	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
5	WP8578352		Switch, Rotary Temperature   (Replaces: 8578352)				$ 237.85
6	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
7	W10763072		Fascia		Appelez-nous	-
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
9	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
11	W10772880		Top (white)				$ 175.01
12	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	W10738304		Bracket, Back		Appelez-nous	-
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
16	W10755535		Push Button, Start				$ 76.34
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10762533		Harness, Main		Appelez-nous	-
20	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 8.10
21	W10123956		Panel, Dampening		Appelez-nous	-
22	WPW10612926		Badge (grey)   (Replaces: W10612926)			Immediately	$ 39.60
1A	W10755024		Guide, Use And Care		Appelez-nous	-
1B	W10758022		Wiring Diagram		Appelez-nous	-
1C	W10771926		Quick Start Guide		Appelez-nous	-
