SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven Parts

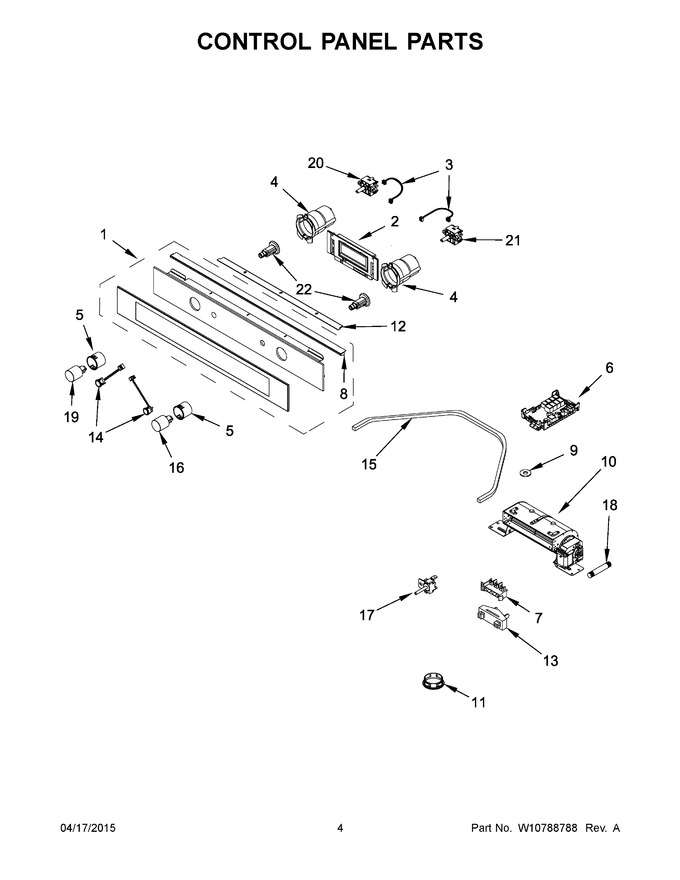

03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10519062		Panel, Control With Glass And Frame				$ 231.34
2	W10836476		Board, Display G2 Evo Analogue   (Replaces: W10517934)			Immediately	$ 574.98
3	W10519030		Harness, Display Selector Switch				$ 7.91
4	W10519814		Support, Push Button				$ 1.68
5	W10519070		Ring, Knob				$ 7.40
6	WPW10517957		Board, Power Ester   (Replaces: W10517957)			Immediately	$ 140.72
7	W10518946		Block, Terminal				$ 69.27
8	W10517985		Vent, Trim Control Panel				$ 115.03
9	8186903		Gasket, Top Panel		Appelez-nous	-
10	W10517958		Blower, Cooling Fan				$ 95.31
11	W10518942		Grommet, Cable		Appelez-nous	-
12	W10518397		Gasket, Control Panel				$ 8.52
13	W10516534		Clamp, Cable		Appelez-nous	-
14	W10519071		Button, Push			Immediately	$ 14.99
15	W10519009		Gasket, Blower Motor		Appelez-nous	-
16	W10519075		Knob, Push				$ 66.24
17	W11791034		Thermostat 285 Celcius   (Replaces: W10519031)				$ 32.72
18	W10518970		Fuse, 315ma				$ 5.33
19	W10519076		Knob, Oven				$ 51.00
20	W10519036		Switch, Oven 11 Position				$ 9.69
21	W10519039		Switch, Selection Incremental +/-				$ 7.41
22	W10519815		Support, Push Button		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
