View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Attachment Parts

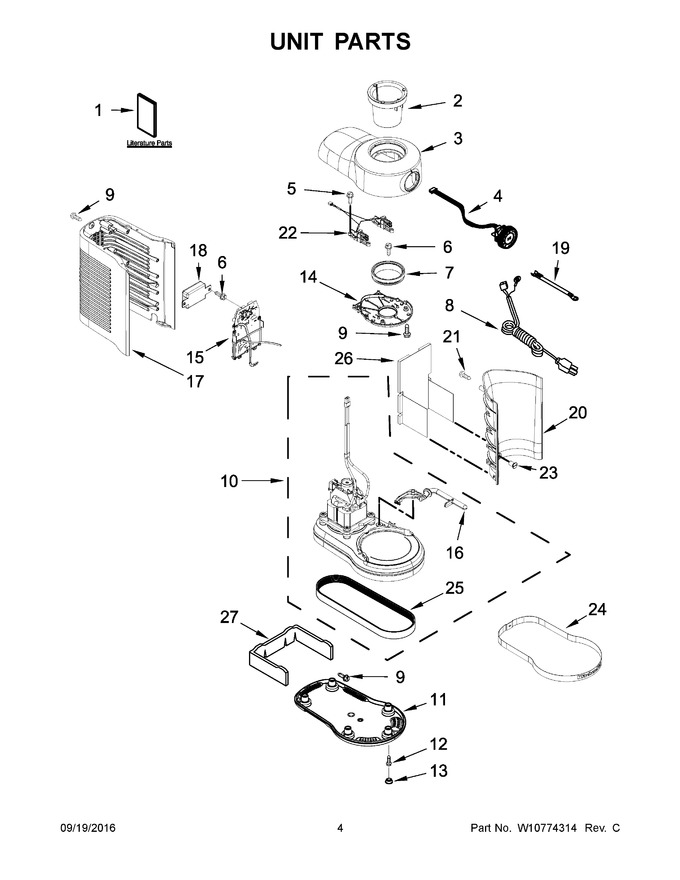

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10683173 | Use & Care Guide (europe/united Kingdom) |
|
- | |||||
| 2 | W10801981 | Collar, Blender |
|
- | |||||
| 3 | W10718041 | Housing, Upper (almond Cr?me) |
|
- | |||||
| 4 | W10625896 | User Interface Assembly |
|
- | |||||
| 5 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 6 | WPW10068250 | Screw (Replaces: W10584177) |
|
$ 4.27 | |||||
| 7 | W11087498 | Seal, Upper Blender (Replaces: W10709017) |
|
- | |||||
| 8 | W10643544 | Power Cord (black (europe)) |
|
- | |||||
| 9 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 10 | W10776358 | Housing Assembly, Lower (includes 230v Motor And Belt) (almond Creme) |
|
- | |||||
| 11 | W10625865 | Base, Blender |
|
- | |||||
| 12 | W11164114 | Screw (Replaces: W10001200) |
|
$ 4.38 | |||||
| 13 | WPW10524701 | Foot, Blender (black) (Replaces: W10524701) |
|
Immediately | $ 4.84 | ||||
| 14 | W10718042 | Cover, Upper Housing (almond Cr?me) |
|
- | |||||
| 15 | W10691804 | Control Board Assembly |
|
- | |||||
| 16 | W10769702 | Lever Assembly (includes Boot) |
|
- | |||||
| 17 | W10718040 | Housing, Surround (almond Creme) |
|
- | |||||
| 18 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 19 | W10643552 | Wire, Ground |
|
- | |||||
| 20 | W10625877 | Housing, Front |
|
- | |||||
| 21 | W10276642 | Screw |
|
$ 6.41 | |||||
| 22 | W10634065 | Switch Assembly, Interlock |
|
- | |||||
| 23 | W10768470 | Bumper Assembly |
|
- | |||||
| 24 | W10629023 | Trim Band (europe/united Kingdom) (Replaces: W10712546) |
|
- | |||||
| 25 | W11123130 | Belt, Drive (Replaces: W10625890) |
|
$ 30.66 | |||||
| 26 | W11688501 | Insulation, Sound (front Housing) (Replaces: W10728670) |
|
- | |||||
| 27 | W10728666 | Insulation, Sound (base) |
|
- | |||||
| 10A | W10776362 | Housing Assembly, Lower (includes 230v Motor And Belt) (imperial Black) |
|
- | |||||
| 10B | W10776356 | Housing Assembly, Lower (includes 230v Motor And Belt) (candy Apple) |
|
- | |||||
| 10C | W10776357 | Housing Assembly, Lower (includes 230v Motor And Belt) (empire Red) |
|
- | |||||
| 10D | W10776359 | Housing Assembly, Lower (includes 230v Motor And Belt) (frosted Pearl) |
|
- | |||||
| 10E | W10776360 | Housing Assembly, Lower (includes 230v Motor And Belt) (medallion Silver) |
|
- | |||||
| 10F | W10776363 | Housing Assembly, Lower (includes 230v Motor And Belt) (onyx Black) |
|
- | |||||
| 10G | W10801696 | Housing Assembly, Lower (includes 230v Motor And Belt) (raspberry Ice) |
|
- | |||||
| 14A | W10708608 | Cover, Upper Housing (imperial Black) |
|
- | |||||
| 14B | W10707892 | Cover, Upper Housing (candy Apple) |
|
- | |||||
| 14C | W10718036 | Cover, Upper Housing (empire Red) |
|
- | |||||
| 14D | W10707886 | Cover, Upper Housing (frosted Pearl) |
|
- | |||||
| 14E | W10707882 | Cover, Upper Housing (medallion Silver) |
|
- | |||||
| 14F | W10707878 | Cover, Upper Housing (onyx Black) |
|
- | |||||
| 14G | W10801690 | Cover, Upper Housing (raspberry Ice) |
|
$ 75.01 | |||||
| 17A | W10708606 | Housing, Surround (imperial Black) |
|
- | |||||
| 17B | W10707889 | Housing, Surround (candy Apple) |
|
- | |||||
| 17C | W10718033 | Housing, Surround (empire Red) |
|
- | |||||
| 17D | W10707884 | Housing, Surround (frosted Pearl) |
|
- | |||||
| 17E | W10707880 | Housing, Surround (medallion Silver) |
|
- | |||||
| 17F | W10707876 | Housing, Surround (onyx Black) |
|
- | |||||
| 17G | W10801688 | Housing, Surround (raspberry Ice) |
|
- | |||||
| 1A | W10729916 | Use & Care Guide (australia) |
|
- | |||||
| 1B | W10810095 | Use & Care Guide (brazil/china) |
|
- | |||||
| 24A | W10729919 | Trim Band (australia) |
|
- | |||||
| 24B | W10629023 | Trim Band (china) |
|
- | |||||
| 3A | W10708607 | Housing, Upper (imperial Black) |
|
- | |||||
| 3B | W10707891 | Housing, Upper (candy Apple) |
|
- | |||||
| 3C | W10718034 | Housing, Upper (empire Red) |
|
- | |||||
| 3D | W10707885 | Housing, Upper (frosted Pearl) |
|
- | |||||
| 3E | W10707881 | Housing, Upper (medallion Silver) |
|
- | |||||
| 3F | W10707877 | Housing, Upper (onyx Black) |
|
- | |||||
| 3G | W10801689 | Housing, Upper (raspberry Ice) |
|
- | |||||
| 8A | W10730060 | Power Cord (black (australia)) |
|
- | |||||
| 8B | W10720322 | Power Cord (black (united Kingdom)) |
|
- | |||||
| 8C | W10862474 | Power Cord (black (china)) |
|
- |
