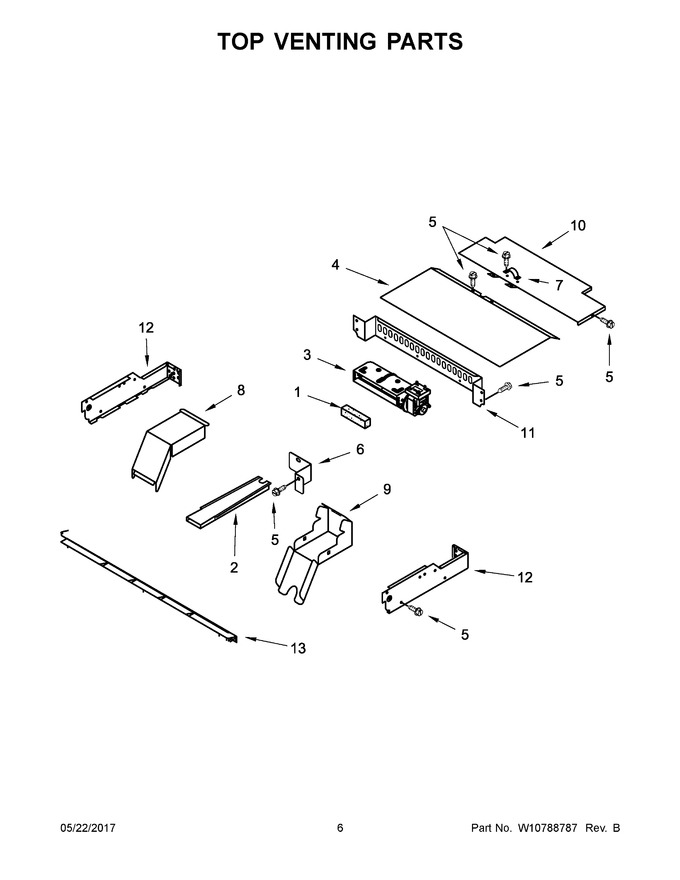

04 - Top Venting Parts
05 - Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 2 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 3 | WPW10016550 | Blower (45mm) (lower) (Replaces: W10016550) |
|
Immediately | $ 283.63 | ||||
| 4 | 4452365 | Cover, Top Front |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | 8302390 | Bracket, Support Air Stop |
|
- | |||||
| 7 | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| 8 | 4455178 | Elbow, Top Vent |
|
$ 15.52 | |||||
| 9 | 4455177 | Elbow, Bottom Vent |
|
$ 11.39 | |||||
| 10 | 4450549 | Cover, Top Rear |
|
- | |||||
| 11 | 8303100 | Back, Control |
|
- | |||||
| 12 | W10790240 | Side, Control Top (left) |
|
$ 78.41 | |||||
| 13 | 4448547 | Vent, Control Panel |
|
$ 111.10 | |||||
| 12A | W10755214 | Side, Control Top (right) |
|
- | |||||
| 3A | WPW10176670 | Blower (65mm) (upper) (Replaces: W10176670) |
|
Immediately | $ 263.76 |
