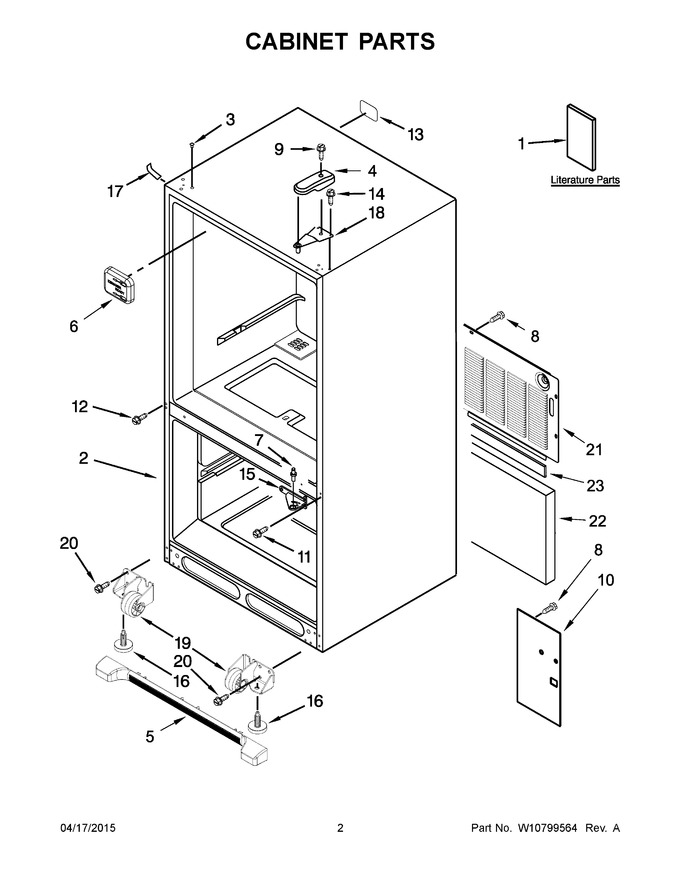

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10645692 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP67001130 | Plug, Button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 4 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 5 | WPW10534166 | Assembly, Grille (includes Clips) (white) (Replaces: W10534166) |
|
Immediately | $ 76.61 | ||||
| 6 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.41 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 16 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 21 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 22 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 23 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 15A | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 17A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W10740382 | Energy Guide |
|
- | |||||
| 1B | W10517966 | Tech Sheet |
|
- | |||||
| 3A | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 4A | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 5A | WPW10534167 | Assembly, Grille (includes Clips) (black) (Replaces: W10534167) |
|
$ 91.42 |
