01 - Cover Sheet

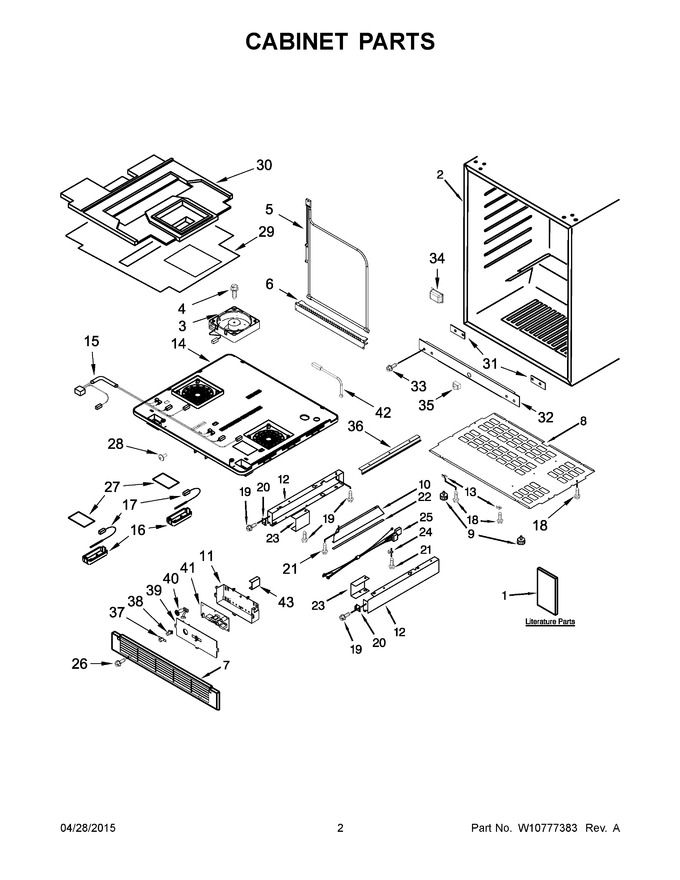

02 - Cabinet Parts
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10741582 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 3 | W10854409 | Motor & Fan (Replaces: W10204942) |
|
Immediately | $ 313.91 | ||||
| 4 | W10205061 | Screw |
|
- | |||||
| 5 | W10292475 | Thermal Fuse Assembly |
|
$ 491.84 | |||||
| 6 | 4344747 | Shield, Heat |
|
$ 78.49 | |||||
| 7 | W10780351 | Grille |
|
$ 114.29 | |||||
| 8 | W10772863 | Cover, Bottom |
|
$ 91.41 | |||||
| 9 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 10 | W10778959 | Auxiliary Plate |
|
- | |||||
| 11 | W10772866 | Main Pcb Box |
|
$ 95.98 | |||||
| 12 | W10621526 | Side Frame, Right Hand |
|
$ 103.92 | |||||
| 13 | 4344771 | Bracket, Grille |
|
$ 104.76 | |||||
| 14 | W10802010 | Cover, Fan |
|
$ 215.61 | |||||
| 15 | W10780364 | Harness, Fan Cover |
|
$ 118.99 | |||||
| 16 | W10775535 | Sensor Case |
|
- | |||||
| 17 | W11238391 | Temperature Sensor (Replaces: W10772916) |
|
Immediately | $ 130.99 | ||||
| 18 | 4344826 | Screw |
|
$ 16.70 | |||||
| 19 | W10780355 | Bolt |
|
$ 50.19 | |||||
| 20 | W10204640 | Mount, Kick Plate (Replaces: W10772865) |
|
$ 79.73 | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344823 | Seal, Brace |
|
$ 101.83 | |||||
| 23 | 4344821 | Support (right Hand) |
|
- | |||||
| 24 | W10270517 | Clamp, Cord |
|
$ 79.51 | |||||
| 25 | W10772870 | Harness Extension |
|
Immediately | $ 134.18 | ||||
| 26 | W10319184 | Screw |
|
- | |||||
| 27 | W10204948 | Sensor Case Seal |
|
- | |||||
| 28 | W10774183 | Screw |
|
- | |||||
| 29 | W10802014 | Plate Cover |
|
- | |||||
| 30 | W10802011 | Insulation, Fan Cover |
|
$ 25.11 | |||||
| 31 | W10780357 | Spacer, Frame Front |
|
- | |||||
| 32 | W10780356 | Frame Front, Bottom |
|
- | |||||
| 33 | W10780349 | Screw |
|
$ 52.00 | |||||
| 34 | W10788689 | Cover |
|
- | |||||
| 35 | W10721454 | Door Switch |
|
$ 41.81 | |||||
| 36 | W10204674 | Block Air Circulation (Replaces: W10780353) |
|
$ 127.68 | |||||
| 37 | W10797391 | Lid, Proximity Sensor |
|
- | |||||
| 38 | W10780359 | Proximity Sensor |
|
$ 119.29 | |||||
| 39 | W10772869 | Cover, Main Pcb |
|
- | |||||
| 40 | W10780358 | Speaker |
|
$ 161.63 | |||||
| 41 | W10807595 | Main Pcb (Replaces: W10780352) |
|
$ 492.80 | |||||
| 42 | W11573590 | Defrost Sensor (Replaces: W10772858) |
|
$ 66.17 | |||||
| 43 | W10788699 | Bracket, Pcb |
|
- | |||||
| 12A | W10621525 | Side Frame, Left Hand |
|
$ 105.89 | |||||
| 1A | W10780343 | Energy Guide |
|
- | |||||
| 23A | 4344820 | Support (left Hand) |
|
- |
