01 - Cover Sheet
02 - Cabinet Parts

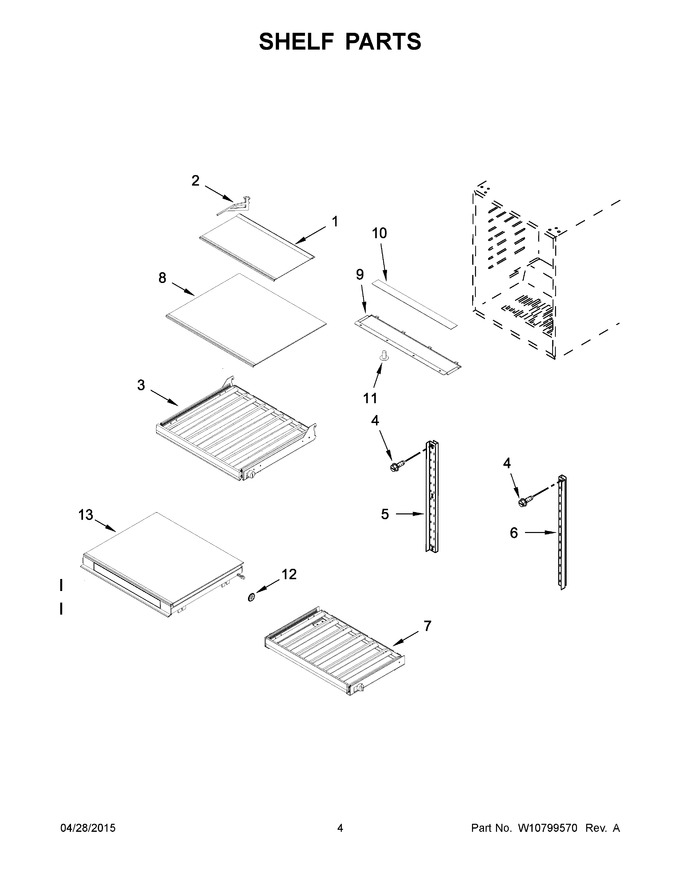

03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10807580 | Glass Shelf Assembly, Top (Replaces: W10802002) |
|
- | |||||
| 2 | W10622802 | Bracket, Shelf |
|
$ 111.20 | |||||
| 3 | W10802017 | Wine Rack Assembly, Top |
|
Immediately | $ 393.91 | ||||
| 4 | W10319189 | Screw |
|
$ 71.14 | |||||
| 5 | W10802000 | Ladder Shelf (left Hand) |
|
$ 50.80 | |||||
| 6 | W10802001 | Ladder Shelf (right Hand) |
|
$ 50.80 | |||||
| 7 | W10804445 | Wine Rack Assembly, Lower (Replaces: W10802018) |
|
$ 396.93 | |||||
| 8 | W10807581 | Glass Shelf Assembly, Bottom (Replaces: W10802003) |
|
- | |||||
| 9 | W10622774 | Lens, Light |
|
$ 33.12 | |||||
| 10 | W11441723 | Led Light Bar (Replaces: W10797323) |
|
$ 294.65 | |||||
| 11 | W10204809 | Screw |
|
- | |||||
| 12 | W10621514 | Liner Bushing |
|
$ 31.71 | |||||
| 13 | W11250117 | Control Panel Assembly (Replaces: W10802016) |
|
$ 458.83 |
