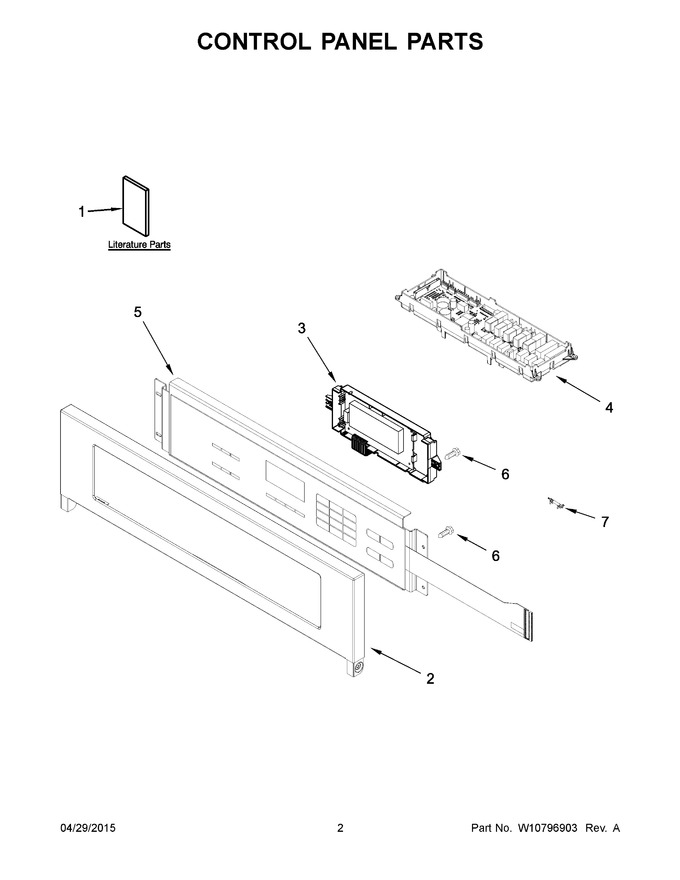

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Top Venting Parts


05 - Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10758337		Guide, Use & Care		Appelez-nous	-
2	W10702189		Assembly, Control Panel Skin (black)		Appelez-nous	-
3	W10803991		Assembly, Display   (Replaces: W10752315)			Immediately	$ 420.04
4	W10803994		Control   (Replaces: W10721213)		Appelez-nous	-
5	W10695000		Assembly, Membrane (black)		Appelez-nous	-
6	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
7	W11025102		Fuse, Thermal   (Replaces: W10794084)			Immediately	$ 20.15
1A	W10758285		Instructions, Installation		Appelez-nous	-
2A	W10704698		Assembly, Control Panel Skin (white)		Appelez-nous	-
2B	W10704699		Assembly, Control Panel Skin (stainless)				$ 416.34
5A	W10695001		Assembly, Membrane (white)		Appelez-nous	-
5B	W10695002		Assembly, Membrane (stainless)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10691763		Harness, Main		Appelez-nous	-
NI	W10691785		Harness, Door Latch		Appelez-nous	-
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
NI	4450800		Screw, Grounding				$ 13.47
NI	4448664		Clamp, Conduit				$ 21.41
NI	4451761		Support, Wiring		Appelez-nous	-
