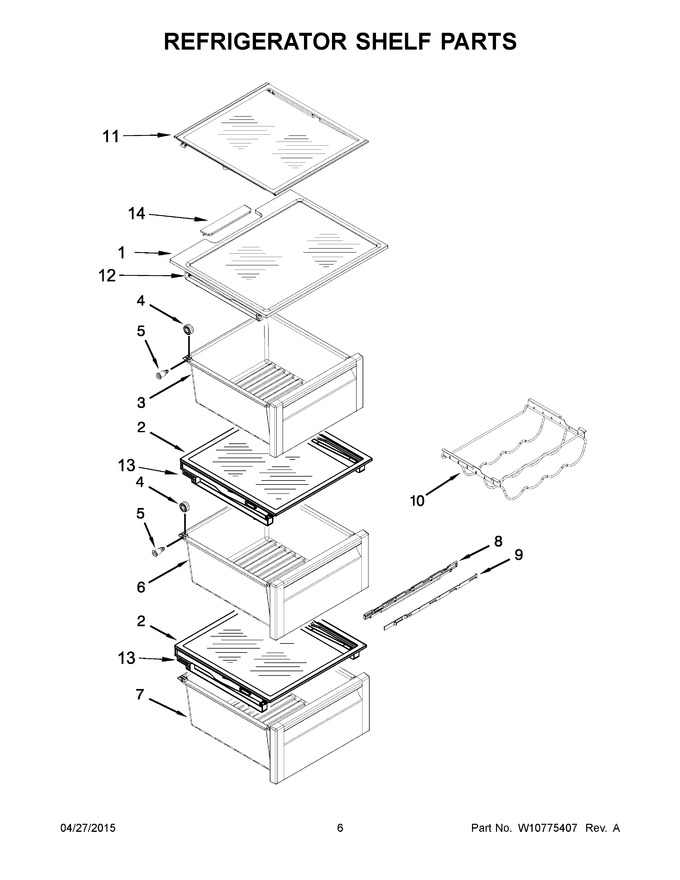

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10387391		Shelf, Snack Pan   (Replaces: W10387391)				$ 332.46
2	W10371954		Cover, Assembly		Appelez-nous	-
3	W11252163		Assembly, Snack Pan   (Replaces: W10727107)		Appelez-nous	-
4	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
5	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
6	W10727108		Crisper Pan Also Order 4 & 5		Appelez-nous	-
7	W10727109		Meat Pan Assembly		Appelez-nous	-
8	W10257332		Housing, Humidity				$ 84.82
9	W10257334		Slide, Humidity				$ 61.15
10	W10478548		Wine Rack				$ 176.91
11	W10508807		Shelf Assembly		Appelez-nous	-
12	W11763408		Rail, Track (left Side)   (Replaces: W10334317)		Appelez-nous	-
13	W10257467		Rail, Track (left Side)				$ 116.90
14	W10392413		Shelf, Filler (white)		Appelez-nous	-
12A	W11675285		Rail, Track (right Side)   (Replaces: W10334323)				$ 22.84
13A	W10257466		Rail, Track (right Side)				$ 116.90
