View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

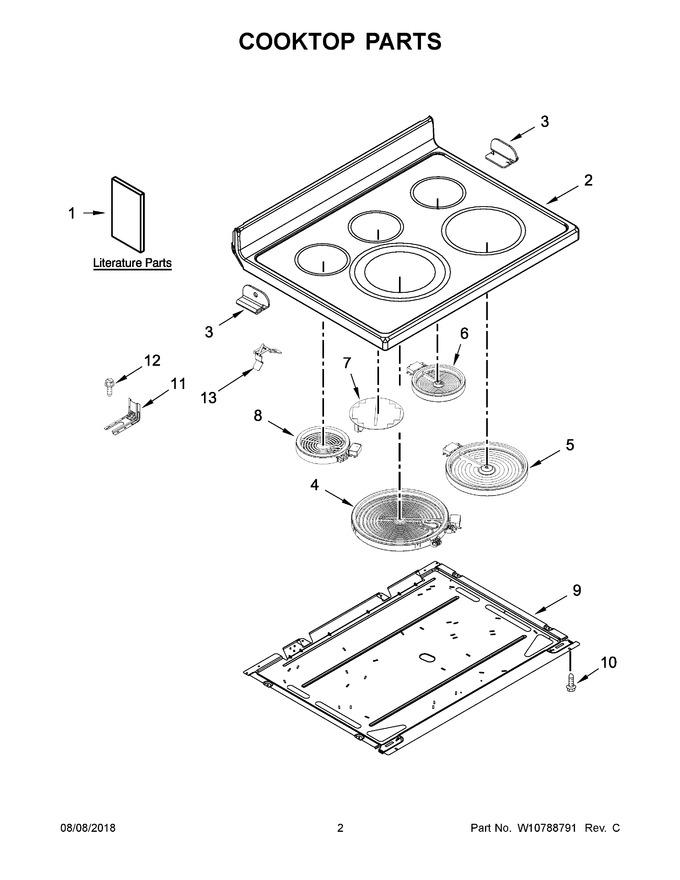

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694007 | Use And Care Guide |
|
- | |||||
| 2 | W10794931 | Cooktop (white) (Replaces: W10697350) |
|
$ 725.21 | |||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 4 | W10823727 | Element (3000w) (left Front) (Replaces: W10711900) |
|
Immediately | $ 342.63 | ||||
| 5 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 9 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 13 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 1A | W10694021 | Tech Sheet |
|
- | |||||
| 1B | W10694027 | Tech Sheet (french) |
|
- | |||||
| 1C | W10694024 | Install, Instructions |
|
- | |||||
| 1D | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1E | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 2A | W10794932 | Cooktop (black) (Replaces: W10697351) |
|
$ 718.70 | |||||
| 2B | W10804319 | Cooktop (stainless) (Replaces: W10697352) |
|
Immediately | $ 932.07 | ||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 117.26 | |||||
| NI | W11212183 | Harness, Sensor (Replaces: W10349640) |
|
$ 235.64 | |||||
| NI | W11188421 | Harness, Cooktop (right) (Replaces: W10349696) |
|
Immediately | $ 214.26 | ||||
| NI | W11188435 | Harness, Main (Replaces: W10580268) |
|
$ 237.98 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10349721 | Harness, Cooktop (left) |
|
$ 61.28 |
