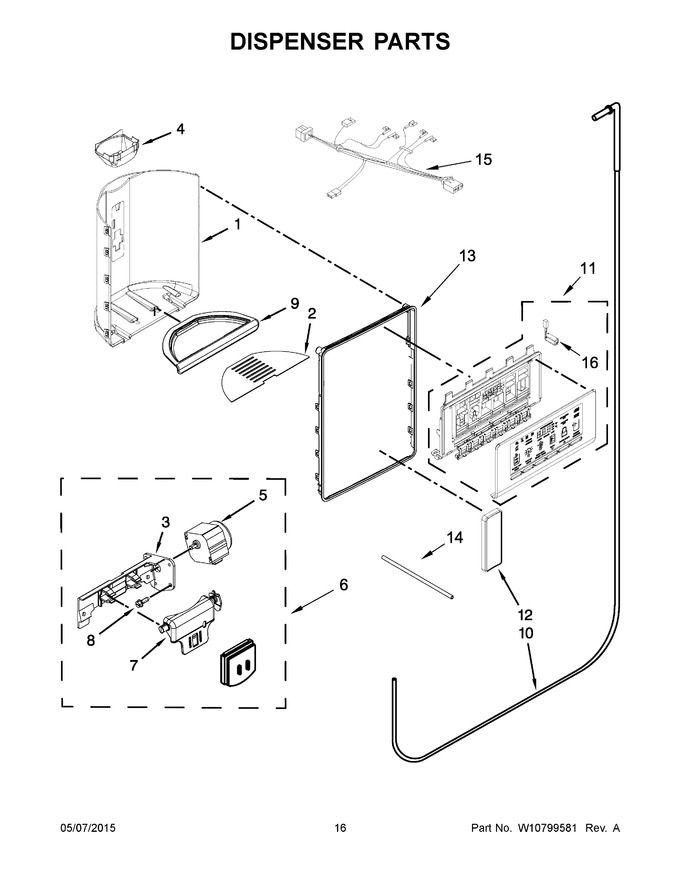

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10276251		False Wall, Dispenser (stainless)		Appelez-nous	-
2	W10276255		Stainless		Appelez-nous	-
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W10781989		Ice Door Assembly   (Replaces: W10353570)				$ 166.39
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276254		Satina		Appelez-nous	-
10	W10341319		Water Tube				$ 107.86
11	W10812261		Electronic Control Assembly   (Replaces: W10757196)				$ 456.33
12	WPW10346924		Pad, Ice & Water (grey)   (Replaces: W10346924)			Immediately	$ 289.65
13	W10276248		Trim Ring		Appelez-nous	-
14	W11620106		Tube, Water   (Replaces: W10691730)				$ 117.84
15	W10605343		Harness, Wire				$ 127.34
16	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
