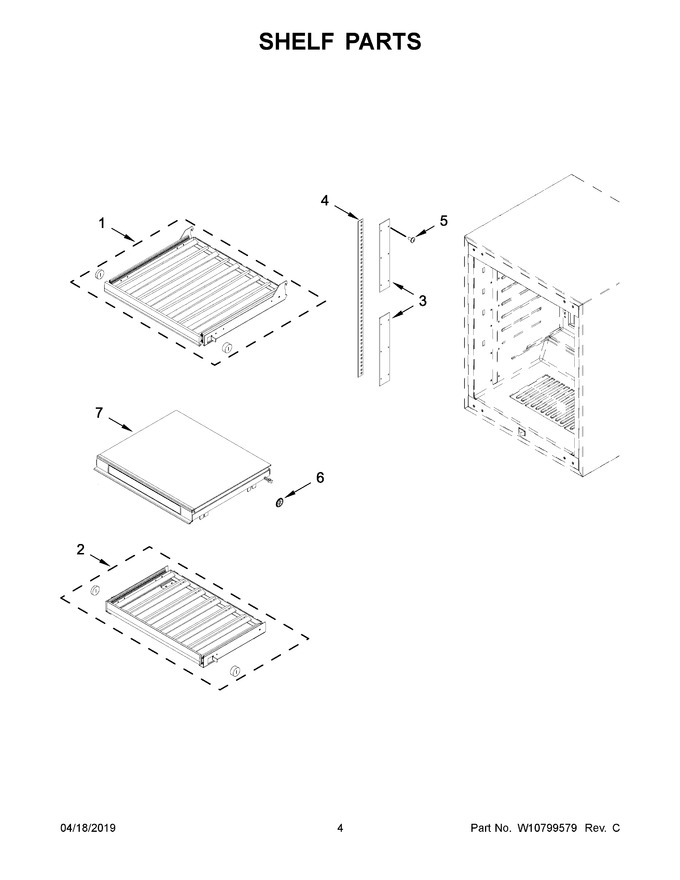

03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10802017 | Wine Rack Assembly, Top |
|
Immediately | $ 393.91 | ||||
| 2 | W10804445 | Wine Rack Assembly, Lower |
|
$ 396.93 | |||||
| 3 | W10624137 | Cover, Light |
|
- | |||||
| 4 | W10804436 | Led Light Bar |
|
Immediately | $ 151.66 | ||||
| 5 | W10622794 | Screw |
|
$ 17.14 | |||||
| 6 | W10621514 | Liner Bushing |
|
$ 31.71 | |||||
| 7 | W11250119 | Control Panel Assembly (also Order Insulation W11364916) (Replaces: W10876289) |
|
$ 459.34 |
