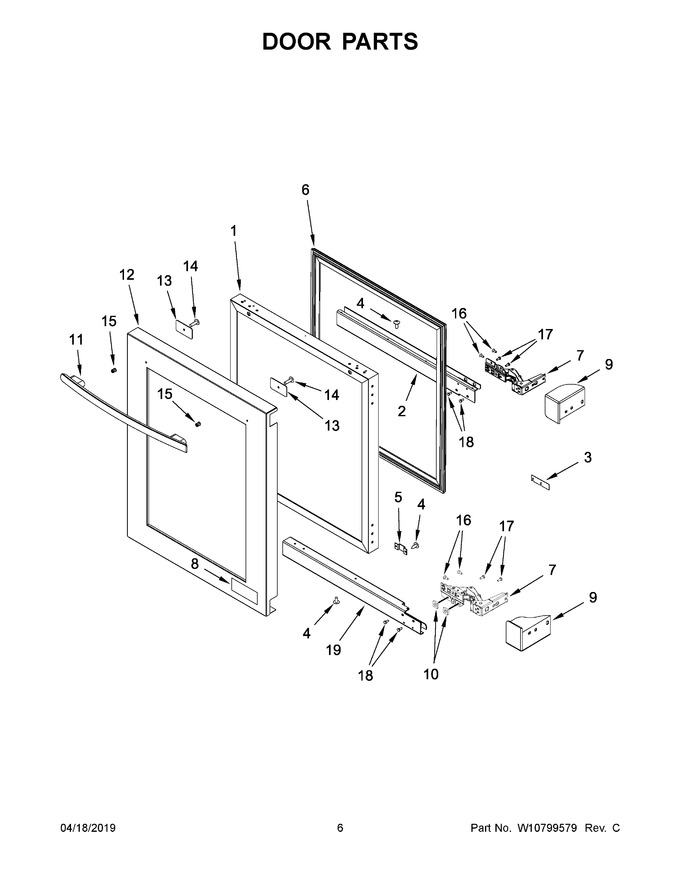

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11431878		Door Assembly (right Hinge)   (Replaces: W10804438)				$ 872.93
2	W10622806		Latch Hinge Fix Plate Top (right Hinge)				$ 200.88
3	W10780350		Spacer, Bottom Hinge		Appelez-nous	-
4	W10319187		Screw				$ 73.51
5	W10622808		Switch Plate				$ 27.27
6	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 271.52
7	W10622809		Assembly, Hinge Top Right & Bottom Left				$ 285.30
8	WPW10214168		Name Plate   (Replaces: W10292471)				$ 85.95
9	W10622811		Cover, Hinge Top Right & Bottom Left				$ 126.03
10	W10780347		Spacer, Mounting Hinge		Appelez-nous	-
11	W10622019		Handle			Immediately	$ 360.90
12	W10800032		Stainless Wrap (right Hinge)				$ 414.25
13	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
14	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
15	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 19.33
16	W10780349		Screw				$ 52.00
17	W10319189		Screw				$ 71.14
18	W10622817		Screw				$ 25.67
19	W10622807		Latch Hinge Fix Plate Bottom (right Hinge)				$ 200.88
12A	W10800033		Stainless Wrap (left Hinge)				$ 414.25
19A	W10623029		Latch Hinge Fix Plate Bottom (left Hinge)		Appelez-nous	-
1A	W10804439		Door Assembly (left Hinge)				$ 892.92
2A	W10623027		Latch Hinge Fix Plate Top (left Hinge)				$ 200.68
7A	W10622810		Assembly, Hinge Top Left & Bottom Right				$ 287.06
9A	W10622812		Cover, Hinge Top Left & Bottom Right				$ 126.03
