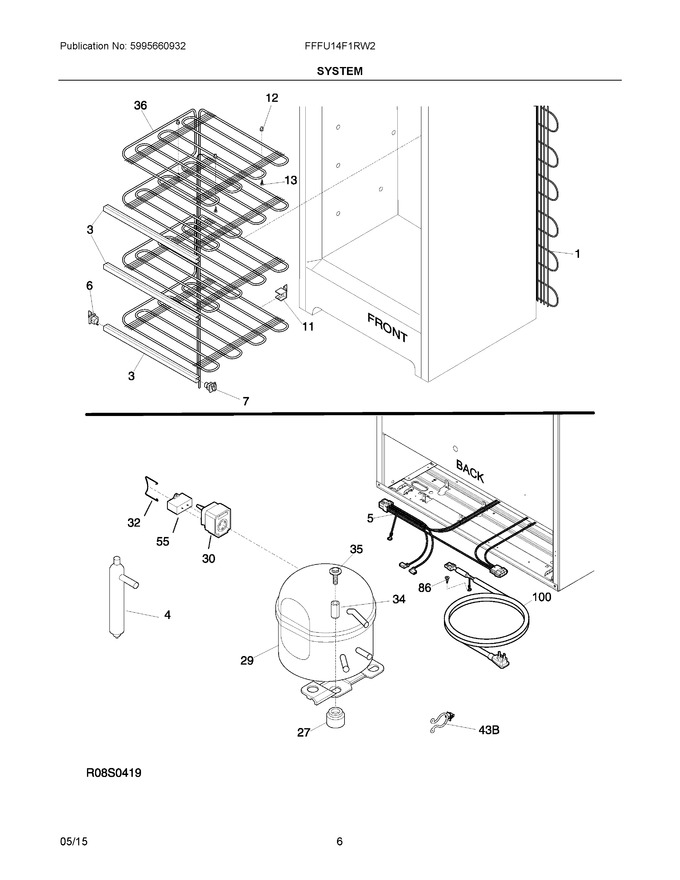

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 598.19
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 71.65
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 35.19
5	5304500851		Harness, W/o Lights, Main		Appelez-nous	-
14	5304496687		Heater-defrost				$ 108.68
15	297414800		Evaporator				$ 161.44
18	297078701		Insulator-evap, Styrofoam, Rh				$ 4.02
19	297078801		Insulator-evap, Styrofoam, Lh				$ 4.02
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 72.16
27	216498900		Grommet, Compressor   (Replaces: 5308002681)				$ 14.46
29	240550946		Compressor, Sjj51c, W/clip   (Replaces: 297411253)			Immediately	$ 440.73
30	216954214		Controller, Compressor   (Replaces: 297259500)				$ 74.81
32	216954300		Clip, Controller				$ 18.90
34	5306594529		Sleeve-compressor				$ 10.34
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286803		Capacitor-run, 15 Mf   (Replaces: 216985001)			Immediately	$ 31.97
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
100	297366805		Cord, Power   (Replaces: 297366804)				$ 76.31
130	297244700		Support, Evaporator Mtg				$ 4.73
15A	297348500		Heat Exchanger				$ 125.21
31A	297413502		Pan-drain   (Replaces: 297413500)				$ 32.29
43B	297315800		Clip, Wire				$ 11.25
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 16.01
NI	297102800		Spacer-tube		Appelez-nous	-
NIA	240555002		Screw-#8-32 X 3/8			Immediately	$ 14.96
