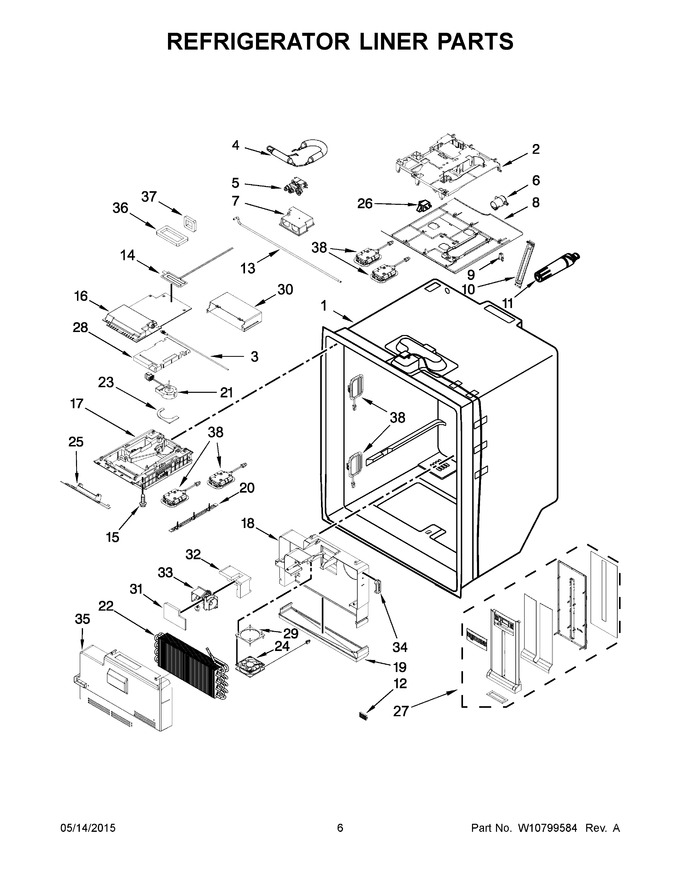

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10842950 | Housing, Water System (Replaces: W10705147) |
|
$ 50.83 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W10482107) |
|
Immediately | $ 118.24 | ||||
| 4 | W11168758 | Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces: W10711460) |
|
Immediately | $ 176.97 | ||||
| 5 | WPW10341329 | Valve, Dual Water (Replaces: W10341329) |
|
Immediately | $ 115.24 | ||||
| 6 | W11194438 | Housing, Water Filter (Replaces: W10238156) |
|
Immediately | $ 220.12 | ||||
| 7 | W10811115 | Enclosure, Valve (Replaces: W10279854) |
|
$ 107.85 | |||||
| 8 | W10754145 | Cover, Waterbox |
|
Immediately | $ 94.45 | ||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 10 | W10754143 | Door, Filter Access |
|
$ 115.82 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11686800 | Waterline, Valve To Hinge (Replaces: W10674102) |
|
$ 88.45 | |||||
| 14 | W11087201 | Heater, Fill Tube (Replaces: W10706850) |
|
Immediately | $ 141.36 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10598013) |
|
Immediately | $ 157.86 | ||||
| 17 | W10750514 | Assembly, Icebox (foamed) |
|
$ 298.62 | |||||
| 18 | WPW10469927 | Enclosure, Evaporator (Replaces: W10469927) |
|
$ 259.88 | |||||
| 19 | W11457241 | Pan, Drain (Replaces: W10525237) |
|
Immediately | $ 144.87 | ||||
| 20 | W10561168 | Trim, Icebox |
|
$ 28.52 | |||||
| 21 | W10846539 | Fan, Icebox (Replaces: W10667566) |
|
Immediately | $ 328.41 | ||||
| 22 | W11492867 | Assembly, Evaporator (Replaces: W10630535) |
|
Immediately | $ 300.66 | ||||
| 23 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 27.77 | ||||
| 24 | W10633627 | Motor, Fan (also Order Fan Support #w10389152) (Replaces: W10724602) |
|
Immediately | $ 203.42 | ||||
| 25 | W11741469 | Assembly, Fascia (Replaces: W10577411) |
|
$ 169.72 | |||||
| 26 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 27 | W10860238 | Air Tower Assembly (Replaces: W10749499) |
|
$ 300.72 | |||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 94.25 | ||||
| 29 | WPW10389152 | Support, Fan (Replaces: W10389152) |
|
Immediately | $ 25.25 | ||||
| 30 | WPW10635024 | Adapter, Icebox (Replaces: W10635024) |
|
Immediately | $ 100.96 | ||||
| 31 | W11225849 | Retainer, Damper (Replaces: W10503491) |
|
Immediately | $ 23.74 | ||||
| 32 | W11230117 | Support, Damper (Replaces: W10503492) |
|
$ 154.84 | |||||
| 33 | WPW10248595 | Damper, Electronic Control (Replaces: W10248595) |
|
Immediately | $ 204.03 | ||||
| 34 | W11190819 | Cover, Thermistor (Replaces: W10561160) |
|
$ 23.39 | |||||
| 35 | W11211387 | Cover, Evaporator (Replaces: W10564044) |
|
$ 250.93 | |||||
| 36 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 8.17 | ||||
| 37 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 27.86 | ||||
| 38 | W11683242 | Assembly, Led Module (Replaces: W10607479) |
|
Immediately | $ 333.96 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10859326 | Harness, Dual Valve (Replaces: W10570599) |
|
$ 121.19 | |||||
| NI | WPW10277799 | Harness, Evaporator Wire (includes Thermistors) (Replaces: W10277799) |
|
Immediately | $ 70.14 | ||||
| NI | W10578603 | Harness, Refrigerator Lights |
|
$ 134.81 |
