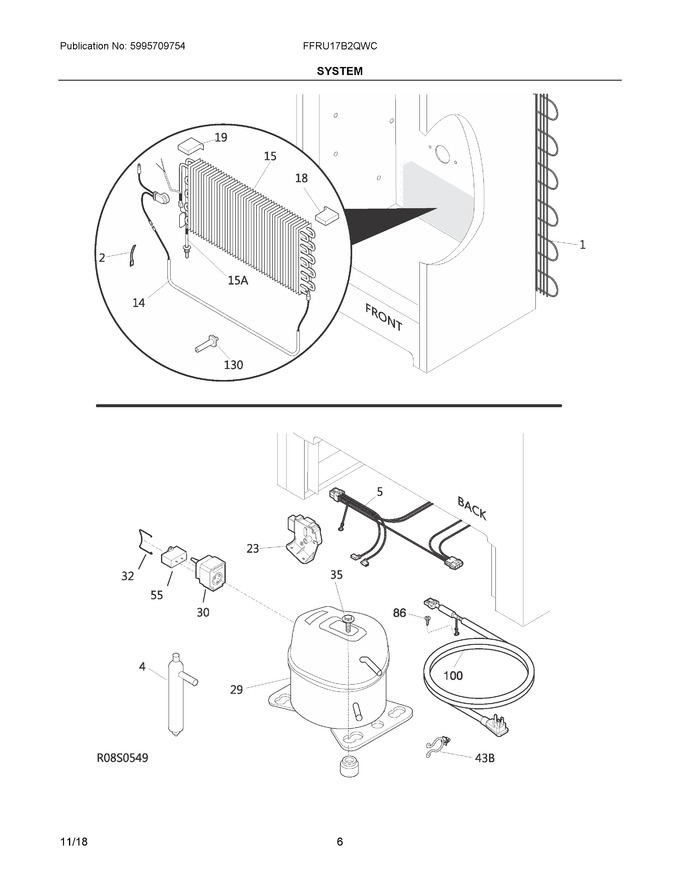

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 598.19 | |||||
| 2 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 71.65 | ||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 35.19 | ||||
| 5 | 297244600 | Harness-main |
|
$ 144.93 | |||||
| 14 | 5304496637 | Heater-defrost |
|
$ 69.08 | |||||
| 15 | 297414901 | Evaporator (Replaces: 297414900) |
|
Immediately | $ 190.38 | ||||
| 18 | 297078701 | Insulator-evap, Styrofoam, Rh |
|
$ 4.02 | |||||
| 19 | 297078801 | Insulator-evap, Styrofoam, Lh |
|
$ 4.02 | |||||
| 23 | 5304518034 | Timer, Defrost, 115v, Tab (Replaces: 297318010) |
|
Immediately | $ 72.16 | ||||
| 27 | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 16.01 | |||||
| 29 | 5304507765 | Compressor, W/o Electricals (Replaces: 297068200) |
|
Immediately | $ 817.80 | ||||
| 30 | 216954210 | Controller |
|
$ 85.05 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 18.90 | |||||
| 35 | 297368500 | Bolt, Compressor |
|
- | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 31.97 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 15.17 | |||||
| 93 | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 12.05 | ||||
| 100 | 297366805 | Cord, Power (Replaces: 297366804) |
|
$ 76.31 | |||||
| 130 | 297244700 | Support, Evaporator Mtg |
|
$ 4.73 | |||||
| 15A | 297217900 | Heat Exchanger (Replaces: 5304494381) |
|
Immediately | $ 102.02 | ||||
| 43B | 297315800 | Clip, Wire |
|
$ 11.25 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| NI | 297102800 | Spacer-tube |
|
- | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.37 | |||||
| NI | 216273000 | Clip, Wire Retainer |
|
$ 24.91 |
