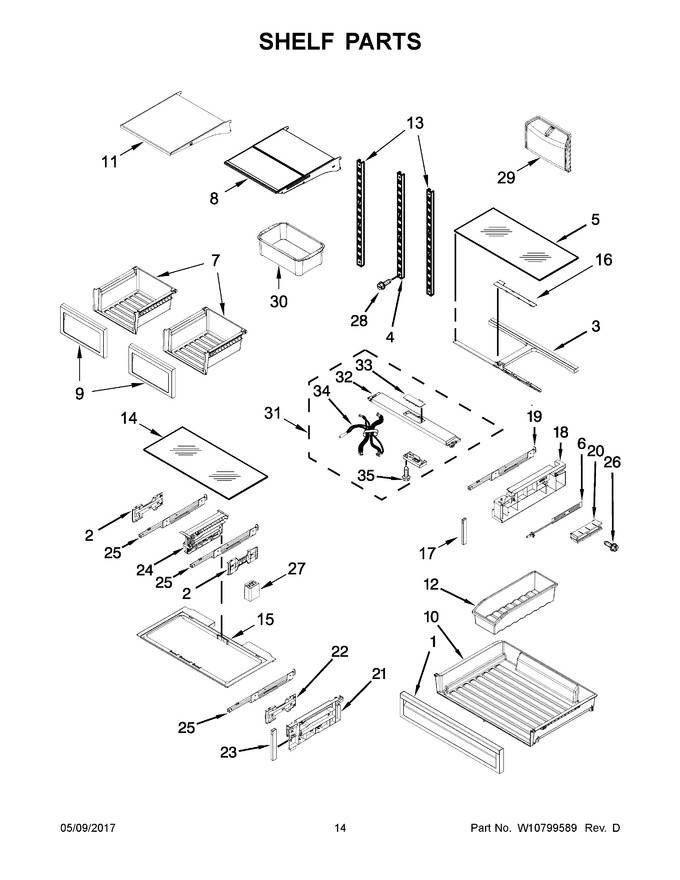

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11034025 | Front, Pantry (Replaces: W10789433) |
|
Immediately | $ 282.60 | ||||
| 2 | W10530317 | Plate, Slide Center |
|
$ 15.28 | |||||
| 3 | WPW10489978 | Support, Pantry (Replaces: W10489978) |
|
$ 56.24 | |||||
| 4 | WPW10248516 | Ladder, Center (Replaces: W10248516) |
|
$ 35.89 | |||||
| 5 | WPW10628815 | Glass, Pantry (Replaces: W10628815) |
|
$ 148.12 | |||||
| 6 | W10342618 | Heater, Pantry |
|
$ 88.06 | |||||
| 7 | W10919809 | Pan, Crisper (Replaces: W10624433) |
|
$ 130.94 | |||||
| 8 | WPW10737427 | Shelf, Tuck (Replaces: W10737427) |
|
$ 283.55 | |||||
| 9 | W11094883 | Front, Crisper (Replaces: W10789490) |
|
Immediately | $ 262.98 | ||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10654844) |
|
Immediately | $ 130.40 | ||||
| 11 | WPW10756310 | Shelf, Fixed (Replaces: W10756310) |
|
$ 266.61 | |||||
| 12 | W10467369 | Divider, Pantry |
|
$ 24.81 | |||||
| 13 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 50.62 | |||||
| 14 | W11228031 | Glass, Crisper (Replaces: W10644519) |
|
$ 244.50 | |||||
| 15 | W10717570 | Cover, Crisper |
|
$ 198.36 | |||||
| 16 | W10490266 | Support, Pantry Cover (includes Gasket) |
|
$ 87.36 | |||||
| 17 | W10467416 | Plate, Pantry Front |
|
$ 38.26 | |||||
| 18 | WPW10498906 | Plate, Side Pantry (left Hand) (Replaces: W10498906) |
|
$ 132.04 | |||||
| 19 | W10499289 | Slide, Pantry (left Hand) |
|
$ 354.74 | |||||
| 20 | W10432697 | Insulation, Sideplate |
|
$ 14.63 | |||||
| 21 | W11315181 | Plate, Crisper (left Hand) (Replaces: W10530318) |
|
$ 80.13 | |||||
| 22 | W10530316 | Plate, Side |
|
$ 27.43 | |||||
| 23 | W10467415 | Plate, Crisper Front |
|
$ 72.29 | |||||
| 24 | W10530307 | Track, Center |
|
$ 89.27 | |||||
| 25 | W11233912 | Slide, Crisper (Replaces: W10248819) |
|
$ 284.43 | |||||
| 26 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 27 | W10530315 | Support, Crisper |
|
$ 17.00 | |||||
| 28 | W10423560 | Screw |
|
- | |||||
| 29 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 17.15 | ||||
| 30 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 83.43 | ||||
| 31 | W11048823 | Cover, Front (includes Led Assembly) (Replaces: W10834493) |
|
$ 342.03 | |||||
| 32 | W10248837 | Cover, Top |
|
- | |||||
| 33 | W10807593 | Assembly, User Interface (Replaces: W10668848) |
|
$ 450.36 | |||||
| 34 | W10668847 | Harness, Wire (includes Thermistor) |
|
$ 151.40 | |||||
| 35 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 18A | WPW10498902 | Plate, Side Pantry (right Hand) (Replaces: W10498902) |
|
$ 69.42 | |||||
| 19A | W11759682 | Slide, Pantry (right Hand) (Replaces: W10499294) |
|
$ 69.89 | |||||
| 21A | W11315180 | Plate, Crisper (right Hand) (Replaces: W10530306) |
|
$ 24.96 |
