01 - Cover Sheet

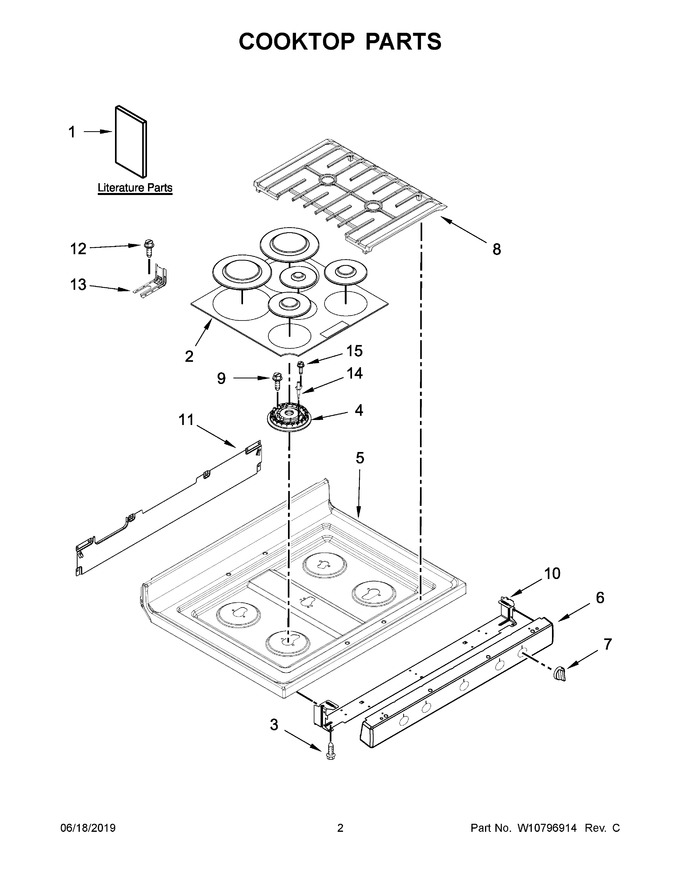

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10553363 | Instructions, Installation |
|
- | |||||
| 1 | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 2 | WPW10183372 | Kit, Burner Cap (wetstone) (Replaces: W10183372) |
|
$ 101.57 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 5 | W10366729 | Cooktop (white) |
|
- | |||||
| 6 | W10444452 | Panel, Manifold (white) |
|
$ 303.43 | |||||
| 7 | W11164681 | Knob (white) (Replaces: W10676222) |
|
Immediately | $ 80.65 | ||||
| 8 | W10695048 | Kit, Grate (wetstone) |
|
$ 241.57 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | W10534174 | Bracket, Manifold Panel |
|
- | |||||
| 11 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 13 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 14 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 15 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 1A | W10392927 | Guide, Use & Care |
|
- | |||||
| 1B | W10538795 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10538796 | Sheet, Tech (french) |
|
- | |||||
| 1D | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 2A | WPW10183374 | Kit, Burner Cap (black) (Replaces: W10183374) |
|
$ 200.18 | |||||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 4B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 5A | W10366730 | Cooktop (black) |
|
- | |||||
| 6A | W10444453 | Panel, Manifold (black) |
|
- | |||||
| 6B | W10330066 | Panel, Manifold (stainless) |
|
$ 259.37 | |||||
| 7A | W11127716 | Knob (black) (Replaces: W10676221) |
|
$ 77.92 | |||||
| 7B | W10766544 | Knob (stainless) (Replaces: W10676228) |
|
Immediately | $ 44.10 | ||||
| 8A | W11394363 | Kit, Grate (black) (Replaces: W10695046) |
|
$ 357.58 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10519952 | Harness, Main |
|
- | |||||
| NI | W10519920 | Harness, Dsi Ground |
|
$ 21.06 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | W10744212 | Harness, Dsi 200c |
|
- |
