01 - Cover Sheet

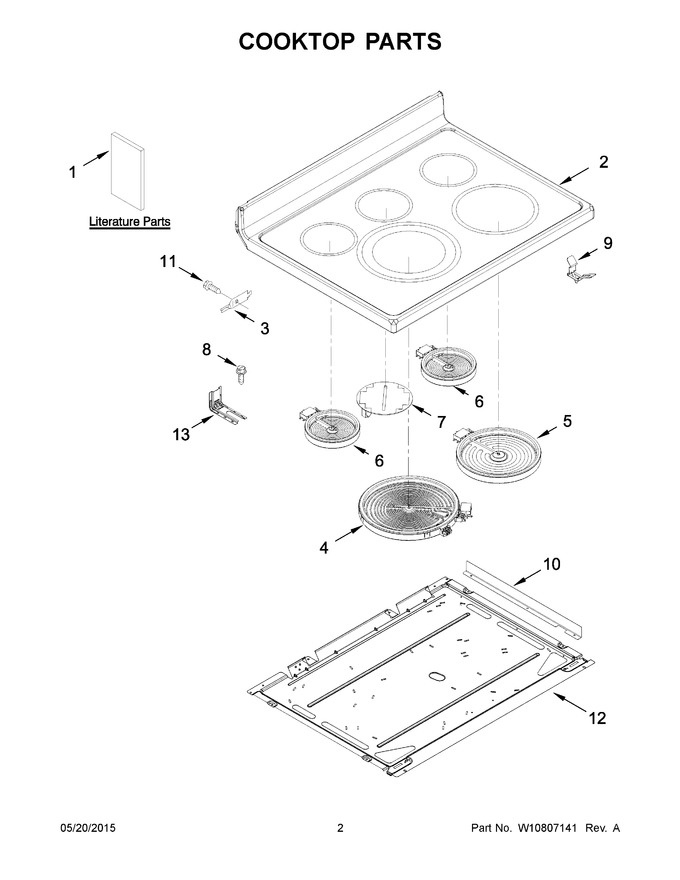

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10694015		User, Instructions		Appelez-nous	-
2	W10798166		Cooktop (stainless)   (Replaces: W10697353)				$ 718.84
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WPW10298145		Element (4500w) (left Front)   (Replaces: W10298145)			Immediately	$ 346.26
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 182.23
7	W11047668		Element, Warm Zone (center)   (Replaces: W10388247)				$ 132.95
8	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	W10348913		Bracket, L-bridge		Appelez-nous	-
11	3196172		Screw			Immediately	$ 13.47
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
1A	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1B	W10694022		Tech, Sheet		Appelez-nous	-
1C	W10694024		Install, Instructions		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10349692		Harness, Wire (cooktop Right)				$ 72.00
NI	W10349693		Harness, Wire (cooktop Left)				$ 89.34
NI	W10629309		Harness, Main			Immediately	$ 232.82
NI	W10349733		Harness, Sensor				$ 135.67
NI	W11134592		Harness, Warm Zone   (Replaces: W10174460)				$ 117.26
NI	W10324946		Harness, Wire (drawer)				$ 29.03
