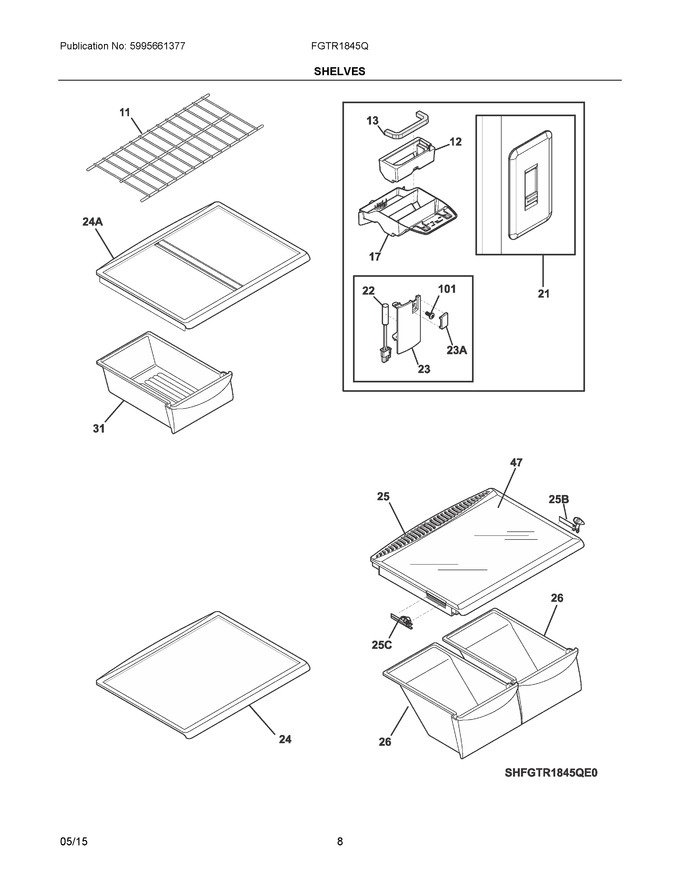

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 102.81
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
17	5304498968		Housing, Air & Water				$ 65.63
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 235.46
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.73
23	241842301		Cap-thermistor			Immediately	$ 37.80
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 143.52
25	240364787		Cover-crisper Pan			Immediately	$ 134.42
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 164.83
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 158.35
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 50.55
101	241953902		Screw, #8 - 18 X .380			Immediately	$ 19.01
23A	241969001		Cap, Screw				$ 18.54
24A	240358926		Shelf-"spill-safe", Sliding, W/pan Hanger			Immediately	$ 143.52
25B	241613501		Control-humidity, Rh			Immediately	$ 13.39
25C	241613502		Control-humidity, Lh				$ 53.09
NI	807332461		Label, Energy Guide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.88
