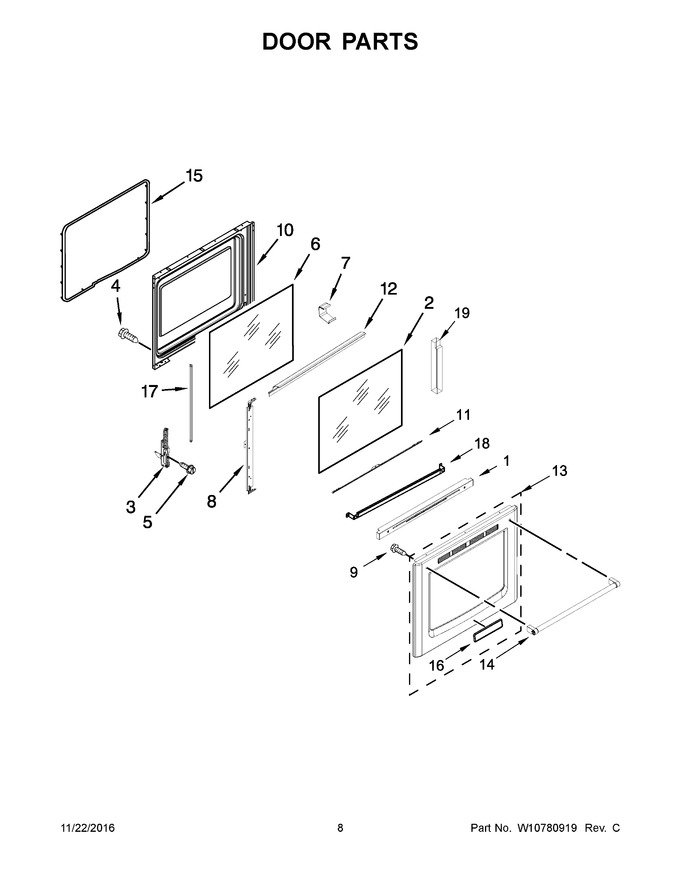

05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 125.35
2	WPW10495962		Glass, Outer Door (white)   (Replaces: W10495962)				$ 402.77
3	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
4	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
7	W10137382		Clip, Panel			Immediately	$ 48.42
8	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
9	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
10	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
11	WPW10333990		Trim, Lower (white)   (Replaces: W10333990)			Immediately	$ 51.90
12	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
13	W10906445		Glass Assembly, Outer Door (stainless)   (Replaces: W10692526)				$ 513.29
14	W11104399		Handle, Door (stainless)   (Replaces: W10551000)				$ 237.48
15	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 87.76
16	W10909682		Badge (grey)   (Replaces: W10518672)			Immediately	$ 76.20
17	W10334003		Trim, Side (white)			Immediately	$ 84.58
18	W10541911		Bracket, Glass Upper Handle			Immediately	$ 39.92
19	W11688565		Insulation, Door   (Replaces: W10772958)				$ 27.02
11A	W10334031		Trim, Lower (black)				$ 77.86
17A	W10334004		Trim, Side (black)				$ 233.76
1A	W10294855		Trim, Vent (black)			Immediately	$ 119.88
2A	W10804365		Glass, Outer Door (black)   (Replaces: W10665481)				$ 319.50
