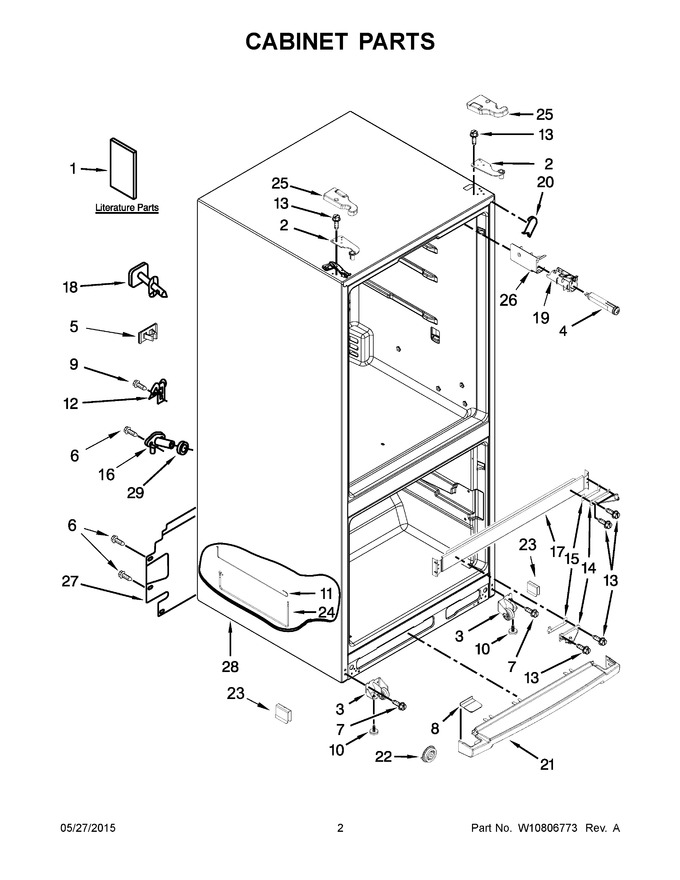

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10596096 | Service & Wiring Sheet |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 70.15 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 51.83 | ||||
| 4 | W10569758 | Filter, Water |
|
$ 0.03 | |||||
| 5 | W11501419 | Clamp, Tube (Replaces: W10352217) |
|
Immediately | $ 12.10 | ||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 85.42 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 11 | W11195038 | Tube, Filter Inlet (Replaces: W10740689) |
|
Immediately | $ 126.69 | ||||
| 12 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 14 | WPW10521411 | Hinge, Center (left Hand) (Replaces: W10521411) |
|
Immediately | $ 77.49 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 25.34 | ||||
| 16 | WPW10601149 | Fitting, Water Tube (Replaces: W10601149) |
|
Immediately | $ 8.56 | ||||
| 17 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 18 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | W10844267 | Housing, Water Filter (Replaces: W10346257) |
|
Immediately | $ 147.80 | ||||
| 20 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 21 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 161.49 | |||||
| 22 | W10331226 | Drum, Toe Grille |
|
$ 47.42 | |||||
| 23 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 24 | W10801011 | Tube, Filter Outlet (Replaces: W10449617) |
|
Immediately | $ 179.69 | ||||
| 25 | W10465765 | Cover, Hinge (lh) (white) |
|
$ 20.57 | |||||
| 26 | WPW10306392 | Cover, Water Filter (Replaces: W10306392) |
|
$ 106.06 | |||||
| 27 | W10636716 | Cover, Unit |
|
$ 105.27 | |||||
| 28 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 29 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 14A | WPW10521409 | Hinge, Center (right Hand) (Replaces: W10521409) |
|
Immediately | $ 38.22 | ||||
| 1A | W10762977 | Energy Label |
|
- | |||||
| 1B | W10790750 | Use & Care Guide |
|
- | |||||
| 1C | 2225623 | Icemaker Service Sheet |
|
- | |||||
| 20A | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 20B | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 21A | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 162.80 | |||||
| 21B | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 163.12 | ||||
| 25A | W10465764 | Cover, Hinge (rh) (white) |
|
$ 21.51 | |||||
| 25B | W10465771 | Cover, Hinge (lh) (black) |
|
$ 19.76 | |||||
| 25C | W10465770 | Cover, Hinge (rh) (black) |
|
$ 22.77 | |||||
| 25D | W10465768 | Cover, Hinge (lh) (grey) |
|
$ 20.53 | |||||
| 25E | W10465767 | Cover, Hinge (rh) (grey) |
|
Immediately | $ 21.46 | ||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 24.87 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 100.64 | ||||
| 8A | W10353930 | Cover, Toe Grille (black) |
|
$ 85.34 | |||||
| 8B | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 85.50 |
