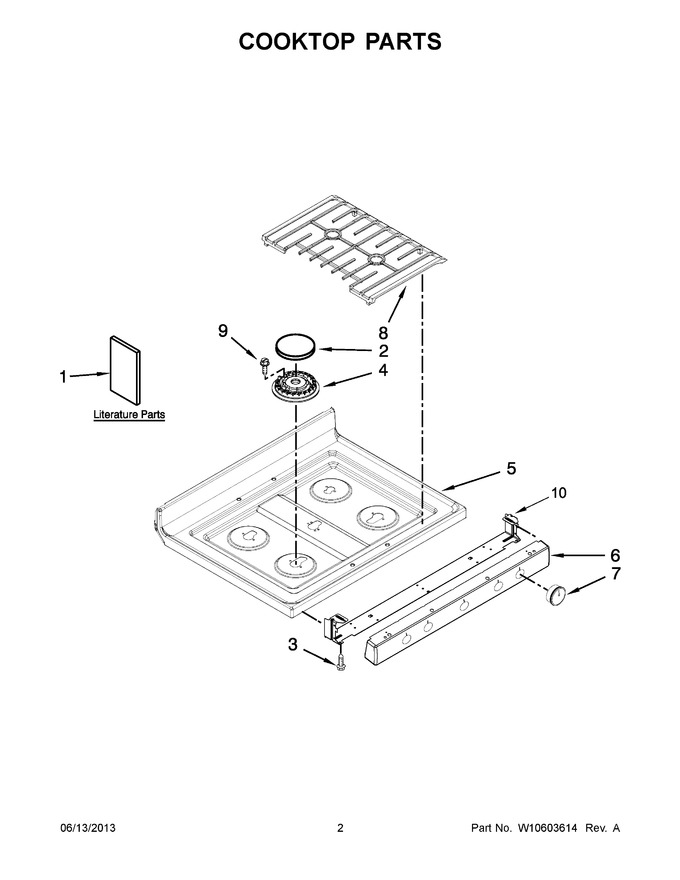

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10553363		Instructions, Installation		Appelez-nous	-
2	WPW10183374		Burner Cap Set (black)   (Replaces: W10183374)				$ 200.18
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	WPW10515455		Burner Head, Ultra Rapid (15k) (left Front And Right Front)   (Replaces: W10515455)				$ 112.47
5	W10366729		Cooktop (white)		Appelez-nous	-
6	W10444452		Panel, Manifold (white)				$ 303.43
7	W10430783		Knob (white)				$ 39.24
8	W11394363		Grate, Set (black)   (Replaces: W10447922)				$ 369.06
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	W10534174		Bracket, Mainfold		Appelez-nous	-
10A	W10530070		Bracker, Rear Gas Cooktop		Appelez-nous	-
1A	W10392927		Owners Manual Wiring Diagram		Appelez-nous	-
1B	W10538795		Tech Sheet (english)		Appelez-nous	-
1C	W10538796		Tech, Sheet (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1F	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1G	W10400067		Guide, Quick Start (french)		Appelez-nous	-
4A	WPW10515454		Burner Head, Semi (9.5 K) (left Rear & Center)   (Replaces: W10515454)				$ 115.74
4B	WPW10515453		Burner Head, Auxi (5k) (right Rear)   (Replaces: W10515453)				$ 99.29
5A	W10366730		Cooktop (black)		Appelez-nous	-
6A	W10444453		Panel, Manifold (black)		Appelez-nous	-
6B	W10330066		Panel, Manifold (stainless)				$ 259.37
7A	WPW10430782		Knob (black)   (Replaces: W10430782)				$ 26.72
7B	W10766544		Knob (stainless)   (Replaces: W10430807)			Immediately	$ 44.10
7C	WPW10467316		Knob (chrome)   (Replaces: W10467316)				$ 21.54
