View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

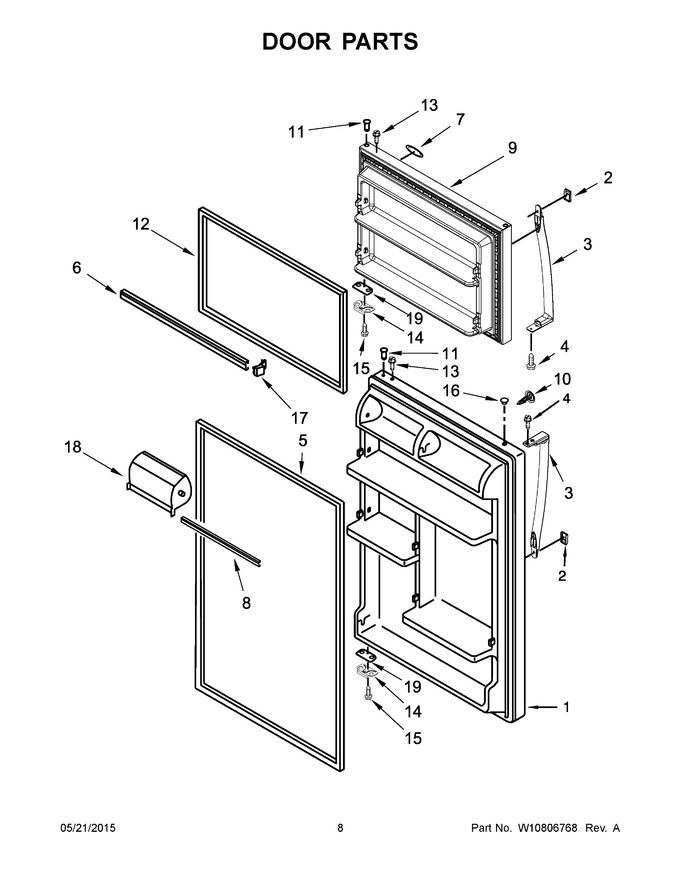

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10677207 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10677207) |
|
- | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 29.91 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 189.08 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | 2319266W | Door Gasket, Magnetic (white) (Replaces: 2264729) |
|
$ 344.81 | |||||
| 6 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 7 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 9 | LW10718980 | Freezer Door (includes Illustration 12) (white) (Replaces: W10718980) |
|
- | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 12 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 151.03 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 19 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 10B | W10830981 | Hole Plug (biscuit/bisque) (Replaces: W10663738) |
|
- | |||||
| 12A | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 12B | WP2319263T | Door Gasket, Magnetic (beige) (Replaces: W10190031) |
|
Immediately | $ 169.53 | ||||
| 16A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 16B | WP2212649 | Hole Plug (biscuit/bisque) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 19A | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 1A | LW10677208 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10677208) |
|
$ 654.75 | |||||
| 1B | LW10686137 | Refrigerator Door (includes Illustration 5) (biscuit/bisque) (Replaces: W10686137) |
|
- | |||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 31.08 | |||||
| 2B | W10672341 | Handle, Trim (biscuit/bisque) |
|
- | |||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 227.34 | |||||
| 3B | W10859918 | Handle, Door (biscuit/bisque) (Replaces: W10672336) |
|
- | |||||
| 5A | 2319266B | Door Gasket, Magnetic (black) (Replaces: 2264725) |
|
$ 376.51 | |||||
| 5B | WP2319266T | Door Gasket, Magnetic (beige) (Replaces: W10190034) |
|
$ 171.60 | |||||
| 7A | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 9A | LW10719014 | Freezer Door (includes Illustration 12) (black) (Replaces: W10719014) |
|
$ 640.95 | |||||
| 9B | LW10719016 | Freezer Door (includes Illustration 12) (biscuit/bisque) (Replaces: W10719016) |
|
- |
