01 - Cover Sheet
02 - Motor And Drive Parts

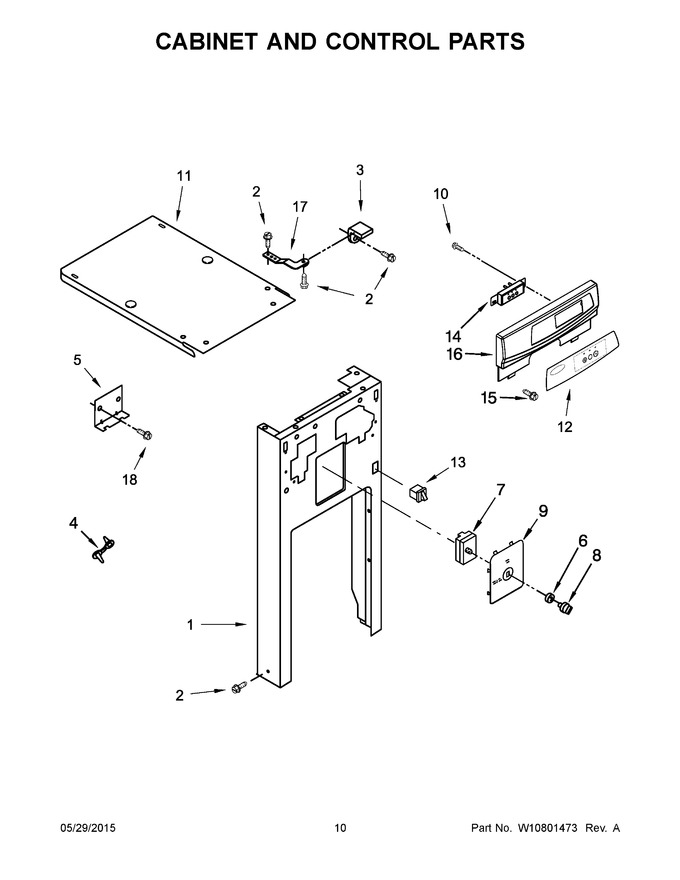

03 - Frame Parts
04 - Powerscrew And Ram Parts
05 - Container Parts
06 - Cabinet And Control Parts
07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9871072 | Panel, Front Frame (black) |
|
$ 246.38 | |||||
| 2 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 3 | WP780239 | Bracket, Mounting (Replaces: 780239) |
|
$ 28.53 | |||||
| 4 | W11820597 | Bushing, Power Cord (Replaces: 776119) |
|
- | |||||
| 5 | 9870125 | Bracket, Protector |
|
- | |||||
| 6 | WP777383 | Nut (Replaces: 777383) |
|
$ 12.83 | |||||
| 7 | 777380 | Switch, Rotary |
|
$ 162.31 | |||||
| 8 | WP4155141 | Knob, Switch (Replaces: 4155141) |
|
$ 59.68 | |||||
| 9 | 9871161 | Plate, Switch (black) |
|
$ 95.20 | |||||
| 10 | W11233072 | Screw (Replaces: 489355) |
|
Immediately | $ 14.72 | ||||
| 11 | 9871825 | Cover-top, Recessed |
|
- | |||||
| 12 | W11050447 | Insert, Decorative (black) (Replaces: 9872017B) |
|
- | |||||
| 13 | 9871829 | Switch, Drawer Tilt (black) |
|
$ 93.95 | |||||
| 14 | W10813586 | Assembly, Switch (Replaces: W10723644) |
|
$ 251.14 | |||||
| 15 | 246131 | Screw |
|
- | |||||
| 16 | W11736462 | Escutcheon, Control (black) (Replaces: 9872039B) |
|
- | |||||
| 17 | W11729437 | Bracket, Retainer (Replaces: 9871993) |
|
Immediately | $ 24.48 | ||||
| 18 | WPW10139210 | Screw (Replaces: 4152204) |
|
$ 8.03 |
