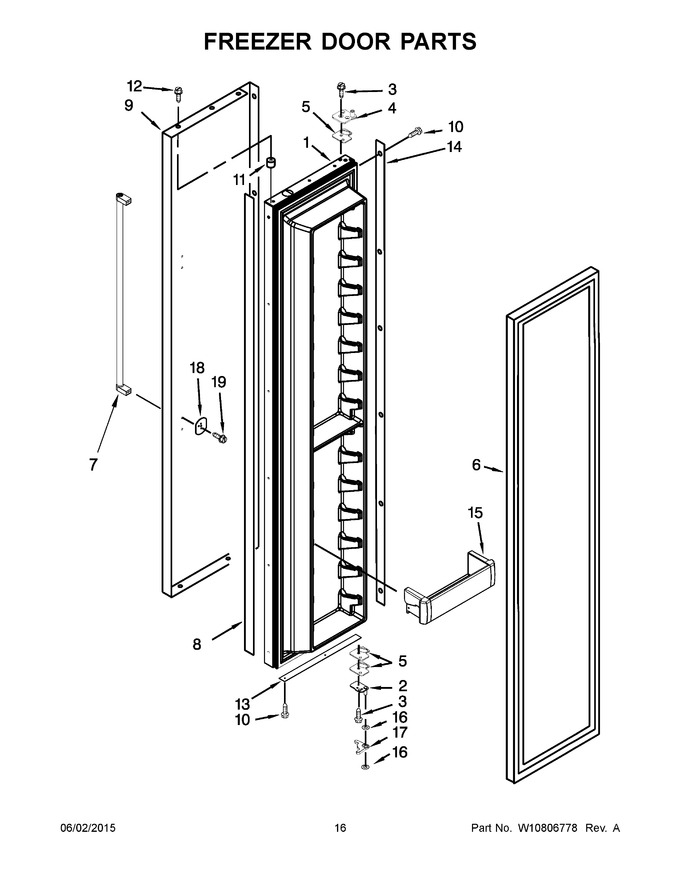

09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193487		Assembly, Freezer Door		Appelez-nous	-
2	W11752085		Assembly, Bottom Hinge   (Replaces: 2302879)				$ 56.76
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
4	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
5	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
6	WP2266901		Gasket, Door   (Replaces: W10694138)				$ 332.86
7	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
8	2309060		Spacer, Handle Side Door		Appelez-nous	-
9	W10782581		Skin, Door (stainless)		Appelez-nous	-
10	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
11	2005433		Spacer, Door Skin (top)				$ 21.00
12	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
13	WP2257333		Spacer, Door Skin (bottom)   (Replaces: 2004933)				$ 126.83
14	W10142296		Spacer, Hinge Side Door		Appelez-nous	-
15	W11590561		Bin, Shallow   (Replaces: W10323603)				$ 84.81
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
18	W10127710		Plate, Handle Door			Immediately	$ 23.35
19	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
