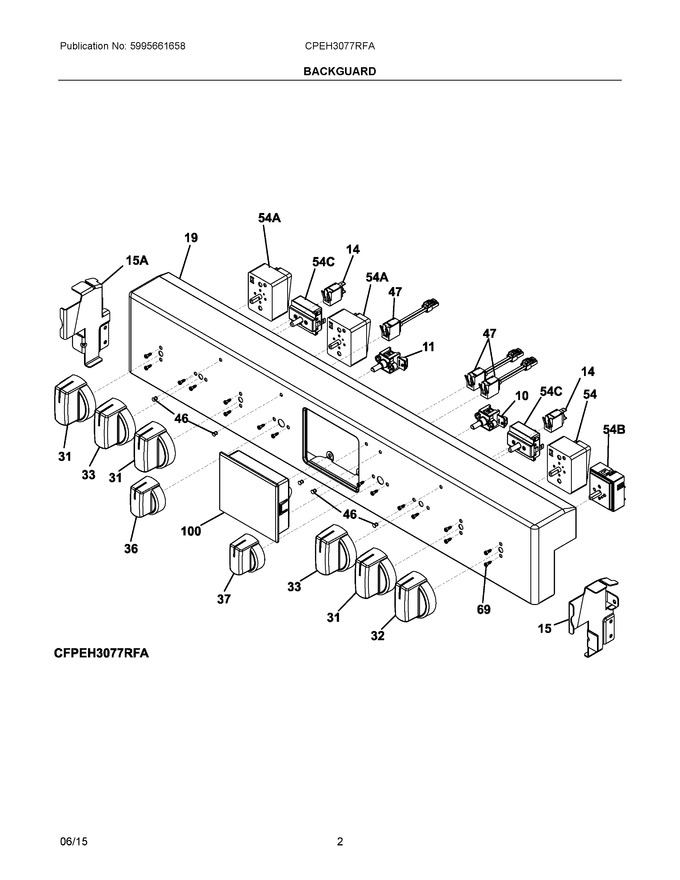

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	808843105		Potentiometer, Oven Temp				$ 155.61
11	5304493649		Potentiometer, Oven Mode			Immediately	$ 79.54
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
15	5304500132		Bracket, Control Panel, Rh				$ 24.68
19	809103501		Panel, Control, Stainless   (Replaces: 809103503)				$ 306.13
31	5304502427		Knob, Switch, Stainless, Single				$ 137.81
32	5304502428		Knob, Switch, Stainless, Dual				$ 133.88
33	5304502429		Knob, Switch, Stainless, Warm Zone			Immediately	$ 155.14
36	809137901		Knob, Selector, Oven				$ 136.51
37	809137902		Knob, Temperature, Oven				$ 153.36
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
47	316022508		Light/lamp, Indicator, Blue				$ 30.33
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
100	808751522		Control Assembly, Complete, Hmi   (Replaces: 808751501)			Immediately	$ 996.24
15A	5304500133		Bracket, Control Panel, Lh				$ 25.99
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 57.42
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 98.89
54C	5304537897		Switch-infinite, Warmer Drw/zone   (Replaces: 316471601)			Immediately	$ 40.12
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304517680		Harness, Wiring, Backguard Cntl   (Replaces: 5304502431)			Immediately	$ 51.57
NI	5304520785		Harness, Wiring, Inf. Switches   (Replaces: 5304500179)				$ 149.63
NI	5304517734		Harness, Wiring, Communication, Pcb   (Replaces: 5304500175)				$ 50.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
