01 - Cover Sheet

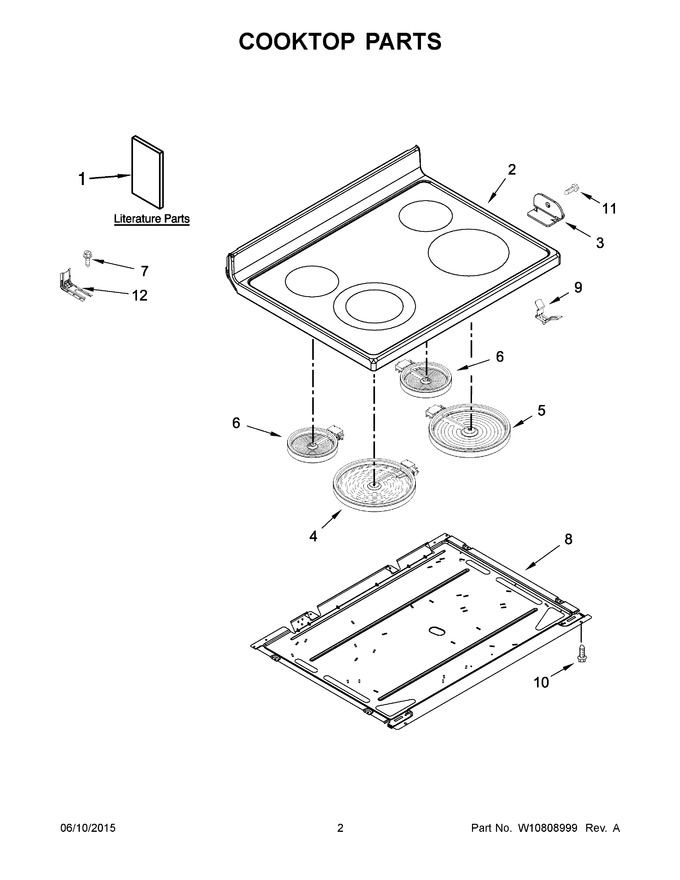

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667165		Guide, Use And Care		Appelez-nous	-
2	W10696529		Cooktop (black)   (Replaces: W10655896)				$ 524.53
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
6	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
7	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
12	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
1A	W10403811		Instructions, Installation		Appelez-nous	-
1B	W10667168		Sheet, Tech		Appelez-nous	-
1C	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W10744211		Wiring Harness Parts, Harness, Cooktop (left)   (Replaces: W10349708)				$ 182.74
NI	W11134550		Wiring Harness Parts, Harness, Cooktop (right)   (Replaces: W10349654)				$ 228.90
NI	W11172424		Wiring Harness Parts, Harness, Sensor   (Replaces: W10083650)				$ 113.78
NI	W11233072		Wiring Harness Parts, Screw   (Replaces: W10362924)			Immediately	$ 14.72
NI	WPW10281322		Wiring Harness Parts, Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	W10580274		Wiring Harness Parts, Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
