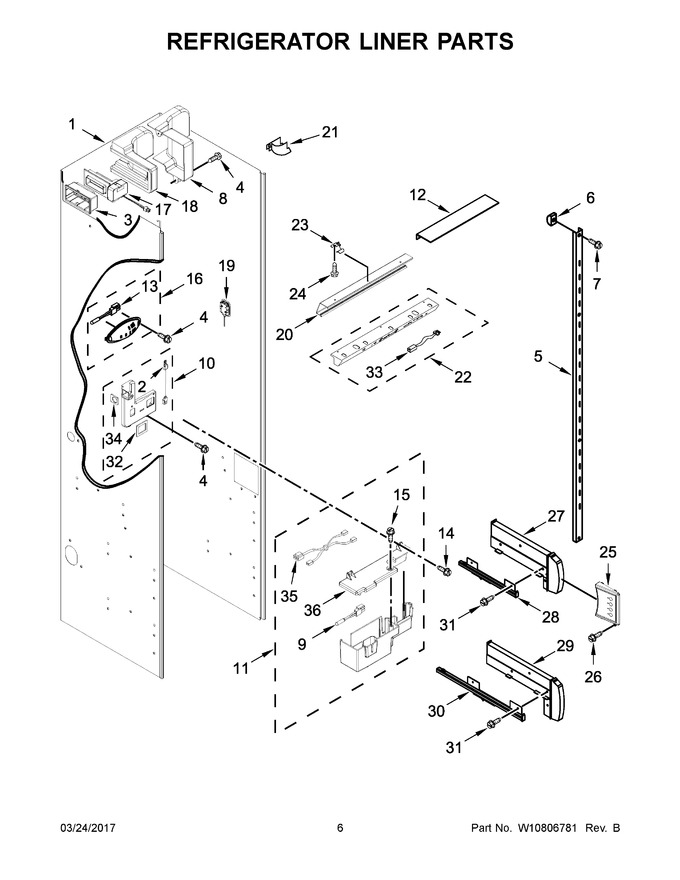

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Serviced)		Appelez-nous	-
2	WP2306010		Thermistor   (Replaces: 2306010)			Immediately	$ 103.58
3	2208970		Duct, Air				$ 151.40
4	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
5	WP2259077		Ladder, Shelf   (Replaces: 2259077)				$ 82.56
6	520965		Support, Ladder				$ 31.35
7	W10808292		Screw		Appelez-nous	-
8	2309087		Cover, Air Diffuser		Appelez-nous	-
9	WP2302937		Thermistor   (Replaces: 2302937)				$ 88.41
10	W10475010		Assembly, Spacer				$ 323.65
11	WPW10169528		Assembly, Control Baffle   (Replaces: W10169528)				$ 337.58
12	W10159487		Diverter, Crisper Cover		Appelez-nous	-
13	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
14	W11830745		Screw (stainless)   (Replaces: 8533929)		Appelez-nous	-
15	W11624204		Screw   (Replaces: 486194)				$ 14.72
16	WP2317844		Assembly, Thermistor   (Replaces: 2317844)				$ 11.38
17	WP2221296		Assembly, Air Baffle   (Replaces: 2221296)			Immediately	$ 412.58
18	WP2309222		Assembly, Air Diffuser   (Replaces: 2309222)				$ 102.07
19	W11683242		Assembly, Led Module   (Replaces: W10843339)			Immediately	$ 333.96
20	W10780413		Bracket, Control Box		Appelez-nous	-
21	2003577		Guard, Air Return		Appelez-nous	-
22	W10798006		Assembly, Control Box				$ 788.81
23	2317000		Clip, Control Box		Appelez-nous	-
24	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
25	W10814805		Assembly, User Interface   (Replaces: W10760791)				$ 384.62
26	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 10.33
27	2256243		Spacer, Meat Pan (left Hand)				$ 83.04
28	2302954		Slide, Meat Pan (left Hand)				$ 343.49
29	2256223		Spacer, Crisper (left Hand)				$ 84.49
30	2302956		Slide, Crisper (left Hand)				$ 298.73
31	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
32	2259398		Seal, Air Duct		Appelez-nous	-
33	W10458299		Wire, Jumper				$ 28.81
34	W10475008		Seal, Air Duct (round Hole)		Appelez-nous	-
35	2310205		Assembly, Meat Pan Wire		Appelez-nous	-
36	2302986		Lid, Baffle		Appelez-nous	-
27A	2256244		Spacer, Meat Pan (right Hand)				$ 103.70
28A	2302955		Slide, Meat Pan (right Hand)				$ 343.18
29A	2256222		Spacer, Crisper (right Hand)				$ 89.24
30A	2302957		Slide, Crisper (right Hand)				$ 228.33
