SELECT A DIAGRAM
01 - Cover Sheet

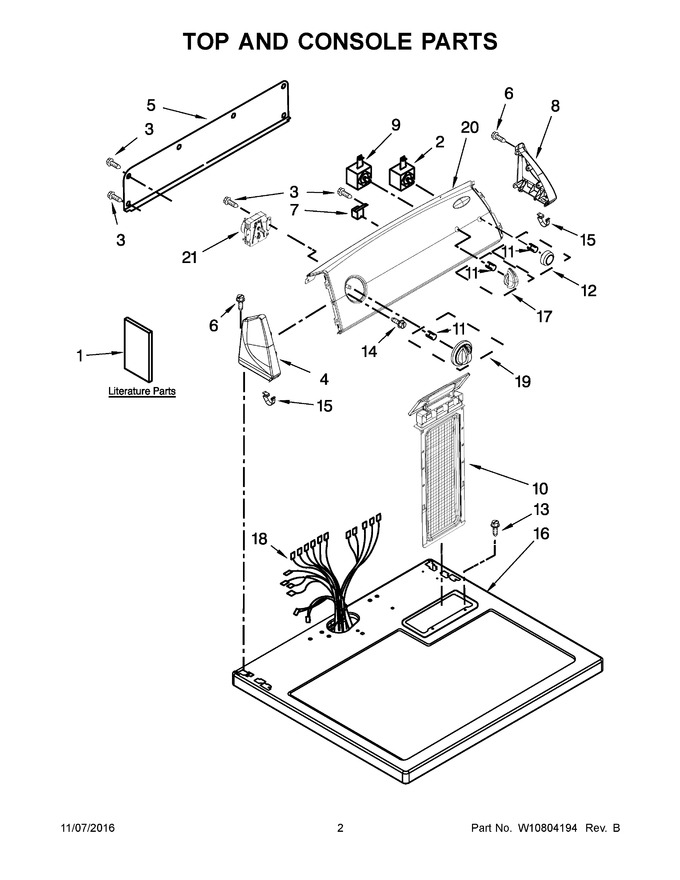

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514188 | Instructions, Installation |
|
- | |||||
| 2 | WPW10112668 | Switch, Push-to-start (Replaces: W10112668) |
|
$ 128.11 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP8565957 | End Cap (left) (white) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 5 | W10103406 | Panel, Rear (console) |
|
$ 135.31 | |||||
| 6 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 7 | 3952439 | Buzzer, Mini |
|
- | |||||
| 8 | WP8565954 | End Cap (right) (white) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: W10717210) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WPW10034790 | Knob, Push To Start (white/metallic) (Replaces: W10034790) |
|
$ 57.81 | |||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 15 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10034380 | Knob, Control (white/metallic) |
|
$ 25.06 | |||||
| 18 | W10758026 | Harness, Main |
|
- | |||||
| 19 | W10034750 | Knob, Timer (white/metallic) |
|
$ 28.27 | |||||
| 20 | WPW10464658 | Assembly, Control Panel And Bracket (Replaces: W10464658) |
|
$ 239.86 | |||||
| 21 | W10642931 | Assembly, Timer (60 Hz.) |
|
$ 369.83 | |||||
| 1A | W10454267 | Use And Care Guide |
|
- | |||||
| 1B | W10648591 | Wiring Diagram |
|
- |
