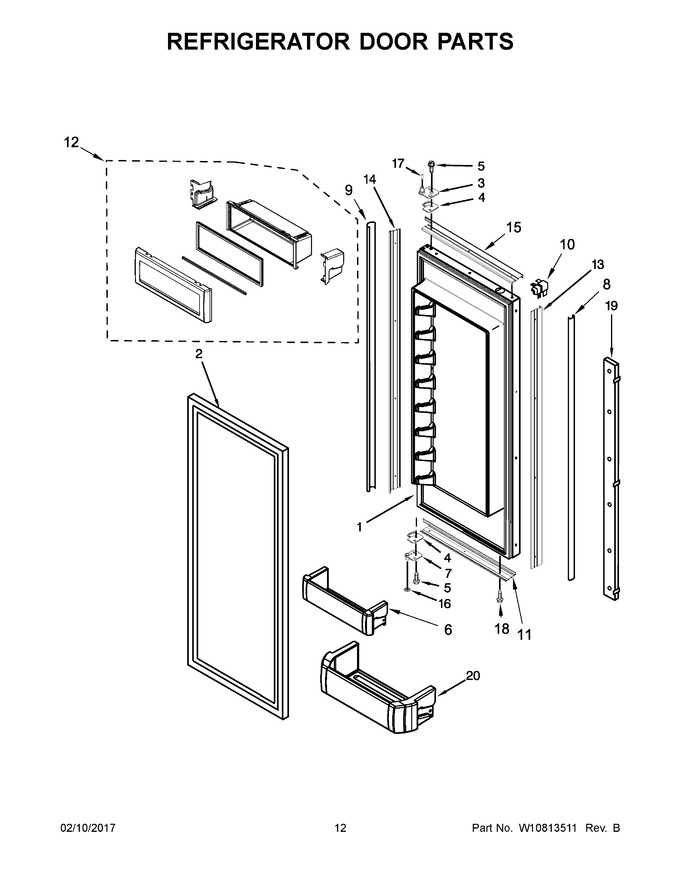

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827080 | Door, Refrigerator (includes Item 2) (left Hand) (Replaces: W10796466) |
|
$ 758.55 | |||||
| 2 | W10600741 | Gasket, Door (grey) |
|
$ 228.32 | |||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | W10529548 | Bin, Door (shallow) |
|
$ 290.81 | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 41.21 | |||||
| 8 | 2309021S | Cover, Side Trim (handle Side) |
|
$ 96.86 | |||||
| 9 | 2309022S | Cover, Side Trim (hinge Side) |
|
$ 118.89 | |||||
| 10 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 11 | 2314031S | Trim, Bottom Door |
|
$ 261.52 | |||||
| 12 | W10798556 | Assembly, Utility Bin |
|
$ 250.50 | |||||
| 13 | 2314030S | Trim, Door (handle Side) |
|
$ 279.02 | |||||
| 14 | 2309031S | Trim, Door (hinge Side) |
|
$ 402.43 | |||||
| 15 | 2314028S | Trim, Top Door |
|
$ 266.68 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W11500952 | Bushing, Door Stop (Replaces: 2316760) |
|
Immediately | $ 34.74 | ||||
| 18 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 19 | W11812028 | Assembly, Mullion (Replaces: W10732108) |
|
Immediately | $ 243.86 | ||||
| 20 | W10529544 | Bin, Door (gallon) |
|
$ 316.01 | |||||
| 1A | W11827071 | Door, Refrigerator (includes Item 2) (right Hand) (Replaces: W10600634) |
|
$ 811.88 | |||||
| 7A | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 41.27 |
