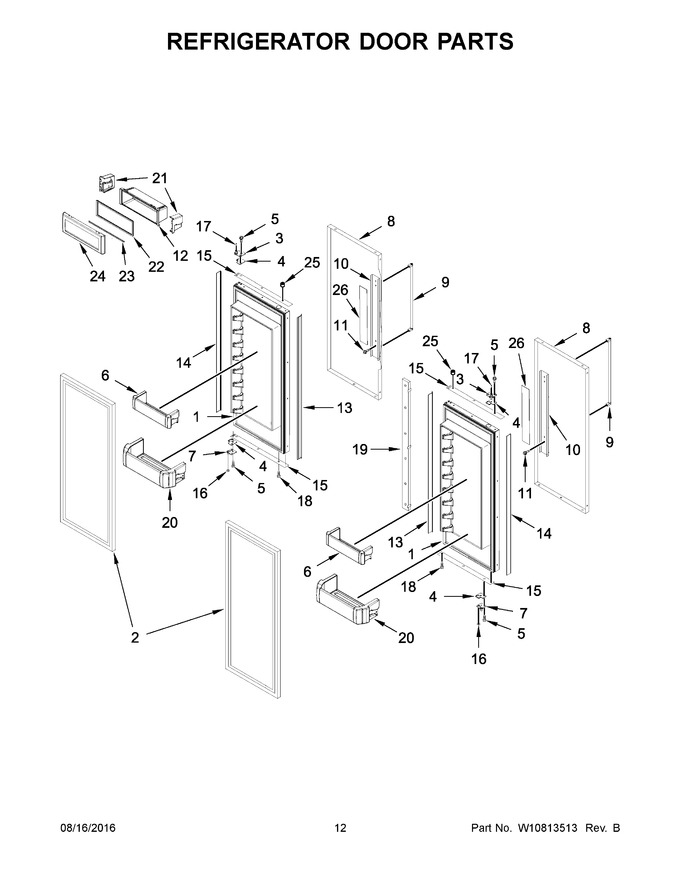

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827080 | Door, Refrigerator (includes Item 2) (left Hand) (Replaces: W10796466) |
|
$ 758.55 | |||||
| 2 | W10600741 | Gasket, Door (grey) |
|
$ 228.32 | |||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: 2320642) |
|
Immediately | $ 130.37 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 130.37 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | W10529548 | Bin, Door (shallow) |
|
$ 290.81 | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 41.21 | |||||
| 8 | W11797627 | Skin, Door (stainless) (Replaces: W10541583) |
|
- | |||||
| 9 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 216.71 | |||||
| 10 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 11 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 12 | W10578281 | Bin, Utility |
|
$ 88.78 | |||||
| 13 | W10600736 | Spacer, Door Edge (handle Side) |
|
$ 303.66 | |||||
| 14 | W10600734 | Spacer, Door Edge (hinge Side) |
|
$ 297.16 | |||||
| 15 | W10600732 | Spacer, Door (top/bottom) |
|
$ 168.98 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W11500952 | Bushing, Door Stop (Replaces: 2316760) |
|
Immediately | $ 34.74 | ||||
| 18 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 19 | W11812028 | Assembly, Mullion (Replaces: W10732108) |
|
Immediately | $ 243.86 | ||||
| 20 | W10529544 | Bin, Door (gallon) |
|
$ 316.01 | |||||
| 21 | W10769396 | Cap, Utility Bin End (left Hand) |
|
$ 47.15 | |||||
| 22 | W10578284 | Gasket, Utility Bin |
|
$ 209.12 | |||||
| 23 | W10608799 | Rail, Utility Lid |
|
$ 140.90 | |||||
| 24 | W10600702 | Lid, Utility |
|
$ 80.07 | |||||
| 25 | 2005433 | Spacer, Door Skin (top) |
|
$ 23.33 | |||||
| 26 | 2309218 | Filler, Foam |
|
- | |||||
| 1A | W11827071 | Door, Refrigerator (includes Item 2) (right Hand) (Replaces: W10600634) |
|
$ 811.88 | |||||
| 21A | W10768113 | Cap, Utility Bin End (right Hand) |
|
$ 47.15 | |||||
| 7A | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 41.27 |
