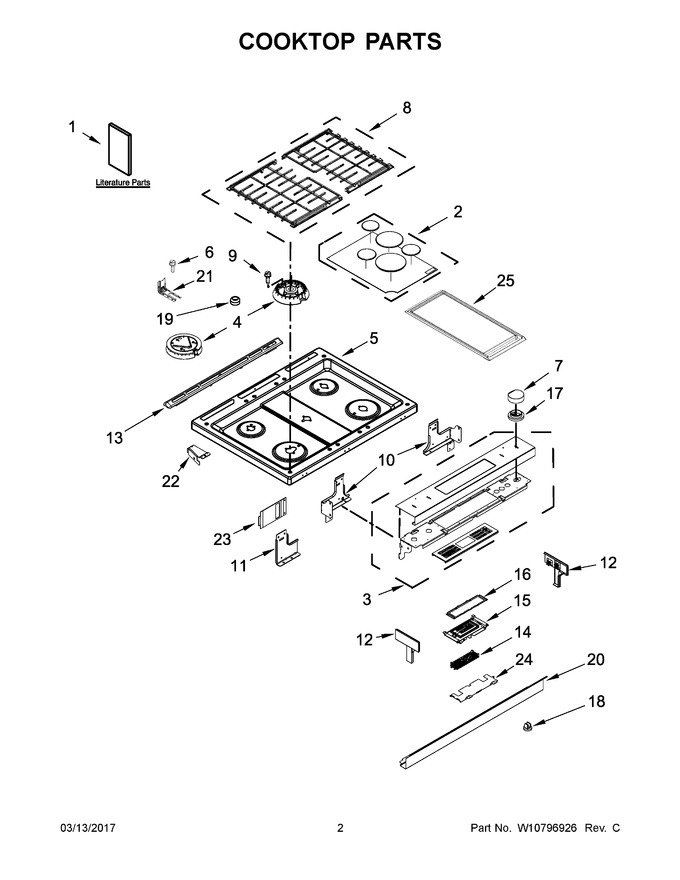

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10665259 Instructions, Installation Appelez-nous -
2 W10876582 Kit, Burner Cap (black)   (Replaces: W10479989) In-Stock Immediately $ 314.80

3 W10913685 Console (stainless)   (Replaces: W10697324) Special Order $ 811.94

4 W11106799 Spreader, Flame (left Front)   (Replaces: W10495853) In-Stock Immediately $ 89.01

5 W10816366 Cooktop (stainless)   (Replaces: W10588278) In-Stock Immediately $ 522.58

6 WP7101P485-60 Screw, Anti-tip Kit   (Replaces: 7101P485-60) Special Order $ 30.72

7 W10872668 Knob (stainless (right Front, Right Rear, Left Rear And Center))   (Replaces: W10786065) In-Stock Immediately $ 106.21

8 W11026378 Set, Grate (black)   (Replaces: W10432520) Special Order $ 375.86

9 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.95

10 W10289170 Support, Cooktop (left) Special Order $ 30.05

11 W10598048 Bracket, Console (center) Special Order $ 25.73

12 W10555937 Endcap (stainless (left)) Special Order $ 67.95

13 W11170796 Trim, Vent (stainless)   (Replaces: W10636529) In-Stock Immediately $ 145.75

14 W11099784 Control, Mrc2   (Replaces: W10759278) In-Stock Immediately $ 439.33

15 W10909684 Assembly, Display   (Replaces: W10603094) In-Stock Immediately $ 616.89

16 W10555923 Bracket, User Interface Special Order $ 107.43

17 W10814133 Bezel (stainless (kit Of 5))   (Replaces: W10785119) In-Stock Immediately $ 113.38

18 W11025100 Grommet   (Replaces: W10645947) In-Stock Immediately $ 13.16

19 W11104127 Bumper   (Replaces: W10664705) In-Stock Immediately $ 21.97

20 W10555934 Panel, Lower Console (stainless) In-Stock Immediately $ 186.07

21 W11502257 Bracket, Anti-tip   (Replaces: W10606241) In-Stock Immediately $ 23.03

22 W10162253 Brace, Corner (left) Special Order $ 74.13

23 W10757531 Keypad, Shield Special Order $ 80.23

24 W10558372 Bracket, Control Special Order $ 25.10

25 W10432544 Griddle In-Stock Immediately $ 56.67

10A W10289169 Support, Cooktop (right) Special Order $ 30.05

12A W10555940 Endcap (stainless (right)) Special Order $ 67.95

1A W10722061 Use And Care Guide Appelez-nous -
1B W10665227 Sheet, Tech Appelez-nous -
1C 9762761 Tips, Safe Cooking (english) Appelez-nous -
1D W10065852 Tips, Safe Cooking (french) Appelez-nous -
1E W10400066 Guide, Quick Start (english) Appelez-nous -
1F W10400067 Guide, Quick Start (french) Appelez-nous -
1G W10703185 Wiring Diagram Appelez-nous -
22A W10162252 Brace, Corner (right) Special Order $ 78.59

4A W10836467 Spreader, Flame (left Rear)   (Replaces: W10464795) Special Order $ 47.63

4B WPW10256028 Spreader, Flame (right Front)   (Replaces: W10256028) In-Stock Immediately $ 137.69

4C WPW10256025 Spreader, Flame (right Rear & Center)   (Replaces: W10256025) In-Stock Immediately $ 91.07

7A W10872674 Stainless (left Front)   (Replaces: W10786064) In-Stock Immediately $ 59.56

NI 16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

NI 3400964 Clip, Wire   (Replaces: 3196520) Special Order $ 89.00

NI W11175842 Suppressor   (Replaces: W10653092) In-Stock Immediately $ 105.04

NI W11176109 Harness, Display   (Replaces: W10598169) In-Stock Immediately $ 224.96

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10580314 Harness, Main Appelez-nous -
NI W11025616 Harness, Keypad   (Replaces: W10575120) In-Stock Immediately $ 53.35

NI W10580316 Harness, Bake Drawer In-Stock Immediately $ 185.69
