01 - Cover Sheet

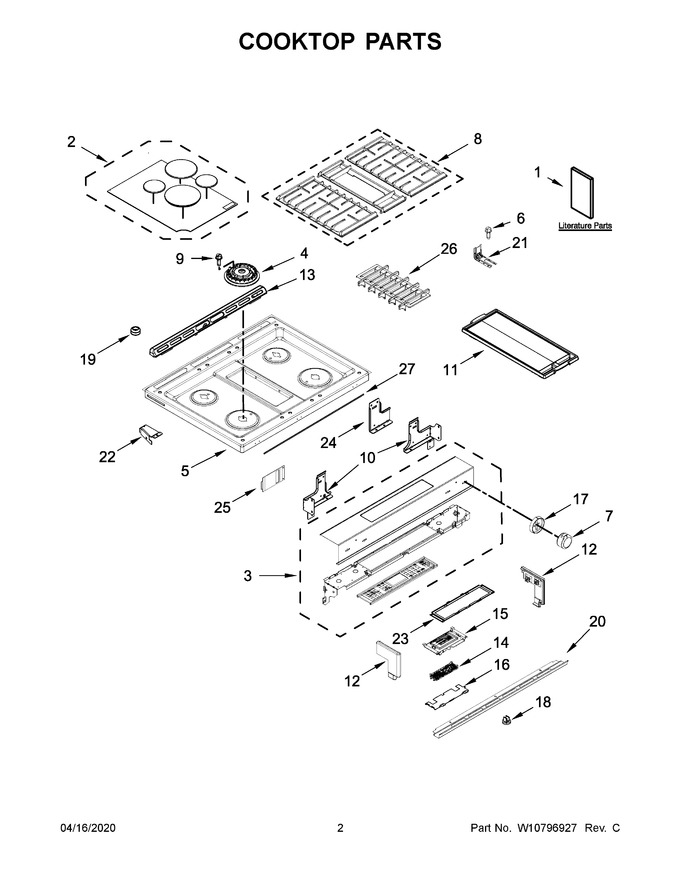

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11033042 | Installation Instructions |
|
- | |||||
| 2 | WPW10300347 | Kit, Burner Cap (black) (Replaces: W10300347) |
|
Immediately | $ 222.26 | ||||
| 3 | W11838614 | Console (stainless) (Replaces: W10697329) |
|
Immediately | $ 578.81 | ||||
| 4 | WPW10256028 | Spreader, Flame (left Front & Right Front) (Replaces: W10256028) |
|
Immediately | $ 137.69 | ||||
| 5 | W10536175 | Cooktop (stainless) |
|
$ 414.47 | |||||
| 6 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 7 | W10872668 | Knob (stainless) (Replaces: W10786065) |
|
Immediately | $ 106.21 | ||||
| 8 | W11211507 | Kit, Grate (black) (Replaces: W10752103) |
|
$ 352.58 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 12 | W10555937 | Endcap (stainless (left)) |
|
$ 67.95 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 14 | W11100515 | Control Mrc2 (Replaces: W10658111) |
|
Immediately | $ 428.16 | ||||
| 15 | WPW10603096 | Assembly, Display (Replaces: W10603096) |
|
Immediately | $ 263.08 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 19 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 20 | W10743276 | Console, Lower Panel (stainless) |
|
$ 86.68 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 25 | W10757531 | Keypad, Shield |
|
$ 80.23 | |||||
| 26 | W10752102 | Grill, Air (black) |
|
$ 239.28 | |||||
| 27 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 12A | W10555940 | Endcap (stainless (right)) |
|
$ 67.95 | |||||
| 1A | W10750372 | Use And Care Guide |
|
- | |||||
| 1B | W10665227 | Tech Sheet |
|
- | |||||
| 1C | W10750129 | Wiring Diagram |
|
- | |||||
| 1D | W11120467 | Quick Start Guide (burner Caps) |
|
- | |||||
| 1E | W10400066 | Quick Start Guide (english) |
|
- | |||||
| 1F | W10400067 | Quick Start Guide (french) |
|
- | |||||
| 1G | W11643128 | Downdraft Template (Replaces: W10817089) |
|
$ 14.41 | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 4A | WPW10256025 | Spreader, Flame (right Rear) (Replaces: W10256025) |
|
Immediately | $ 91.07 | ||||
| 4B | WPW10256024 | Spreader, Flame (left Rear) (Replaces: W10256024) |
|
$ 91.07 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11123868 | Reducer, Venturi (choke) (Replaces: W10340851) |
|
$ 103.62 | |||||
| NI | W10814444 | Harness, Main |
|
- | |||||
| NI | W11198274 | Harness, Down Draft Fan Jumper |
|
$ 117.73 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 |
