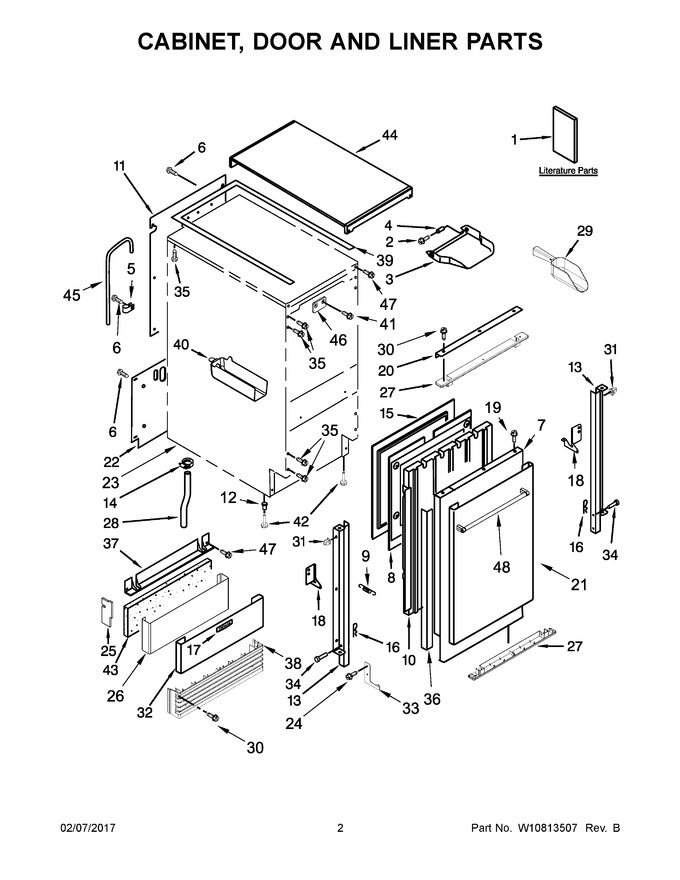

02 - Cabinet, Door And Liner Parts


03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541605		Use & Care Guide		Appelez-nous	-
2	3400886		Screw (stainless)				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2208352B		Panel, Exterior (black)		Appelez-nous	-
8	W10563026		Panel, Interior		Appelez-nous	-
9	WP2208570		Spring, Hinge   (Replaces: 2208570)				$ 23.79
10	2208377		Insulation		Appelez-nous	-
11	W10218024		Ballast, Back		Appelez-nous	-
12	3400240		Nut		Appelez-nous	-
13	2217466		Bracket, Door (left Hand)		Appelez-nous	-
14	489503N		Clamp		Appelez-nous	-
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 244.84
16	W11545866		Clip   (Replaces: W10136142)				$ 11.88
17	W10909682		Stainless   (Replaces: W10518673)			Immediately	$ 76.20
18	2208425		Hinge (left Hand)		Appelez-nous	-
19	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
20	WP2208452B		Assembly, Magnet Endcap   (Replaces: 2208452B)				$ 115.37
21	W11089492		Door, Panel Wrap   (Replaces: W10786921)		Appelez-nous	-
22	WPW10136200		Assembly, Unit Cover   (Replaces: W10136200)				$ 113.70
23	N/P		Cabinet & Liner (not Serviced)		Appelez-nous	-
24	WP488163		Screw   (Replaces: 488208)				$ 7.92
25	2217225		Pad, Foam		Appelez-nous	-
26	2208382B		Panel, Lower (black)		Appelez-nous	-
27	W11413461		Endcap, Door (black)   (Replaces: 2208350B)		Appelez-nous	-
28	W10825876		Tube, Bin To Pump   (Replaces: W10493860)				$ 74.89
29	W10508276A		Scoop   (Replaces: W10508276)		Appelez-nous	-
30	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 8.10
31	WP692400		Screw Grommet   (Replaces: 692400)			Immediately	$ 8.02
32	W11089493		Panel, Lower Wrap   (Replaces: W10786923)		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw   (Replaces: 489048)				$ 8.78
36	2208595B		Grommet, Edge Guard (black)		Appelez-nous	-
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
38	WP2217206B		Grill, Front (black)   (Replaces: 2217206B)				$ 116.28
39	2217296		Gasket, Top Panel		Appelez-nous	-
40	W10557773		Holder, Scoop		Appelez-nous	-
41	8281191		Screw				$ 6.77
42	8193716		Leg, Leveling   (Replaces: 3374849)			Immediately	$ 88.96
43	2208384		Insulation, Lower Panel		Appelez-nous	-
44	W10320118		Top (black)		Appelez-nous	-
45	WPW10217906		Tube, Air Vent   (Replaces: W10217906)				$ 125.83
46	2208434		Strike, Magnet		Appelez-nous	-
47	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
48	W11450233		Handle, Door (stainless)   (Replaces: W10710254)				$ 181.46
13A	2217465		Bracket, Door (right Hand)		Appelez-nous	-
18A	2208426		Hinge (right Hand)		Appelez-nous	-
1A	W10761663		Installation Instructions		Appelez-nous	-
1B	W10761657		Tech Sheet		Appelez-nous	-
