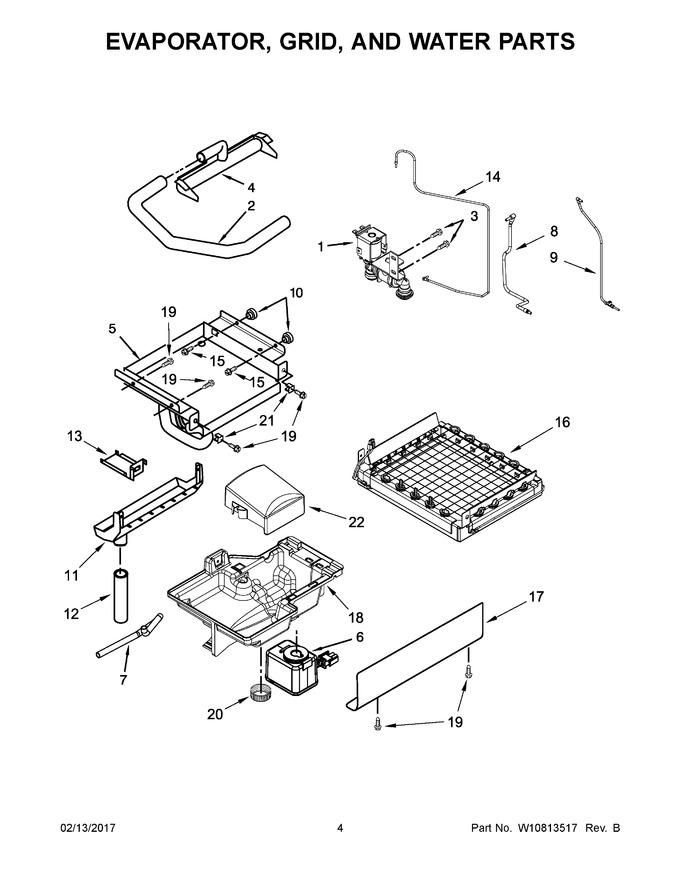

03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10897719		Valve, Water (includes Regulator)   (Replaces: W10870921)			Immediately	$ 183.64
2	W10863947		Tube, Pump   (Replaces: W10772963)				$ 87.44
3	WP488163		Screw   (Replaces: 488208)				$ 7.92
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 87.44
5	WPW10218037		Evaporator   (Replaces: W10218037)				$ 559.86
6	W11542868		Pump, Reservoir Drain   (Replaces: W10489125)			Immediately	$ 146.06
7	W11097809		Tube, Reservoir Drain   (Replaces: W10539379)				$ 37.46
8	WPW10678299		Waterline, Reservoir   (Replaces: W10678299)				$ 70.25
9	W11256498		Tube, Inlet   (Replaces: W10776033)				$ 127.83
10	836667		Spacer		Appelez-nous	-
11	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 188.34
12	W11033204		Tube, Water Slide   (Replaces: W10635836)			Immediately	$ 66.94
13	2208427		Bracket, Evaporator Grid		Appelez-nous	-
14	WPW10678300		Waterline, Valve   (Replaces: W10678300)				$ 71.82
15	3400886		Screw (stainless)				$ 5.65
16	W10919199		Assembly, Grid   (Replaces: W10783275)				$ 390.92
17	W10493888		Cover, Grid		Appelez-nous	-
18	W11614101		Reservoir, Water   (Replaces: W10489142)				$ 67.50
19	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 8.10
20	W11023835		Cap, Drain   (Replaces: W10555398)				$ 33.10
21	WP3400909		Grommet, Screw   (Replaces: 3400909)				$ 7.94
22	W10512292		Cover, Bracket				$ 109.68
