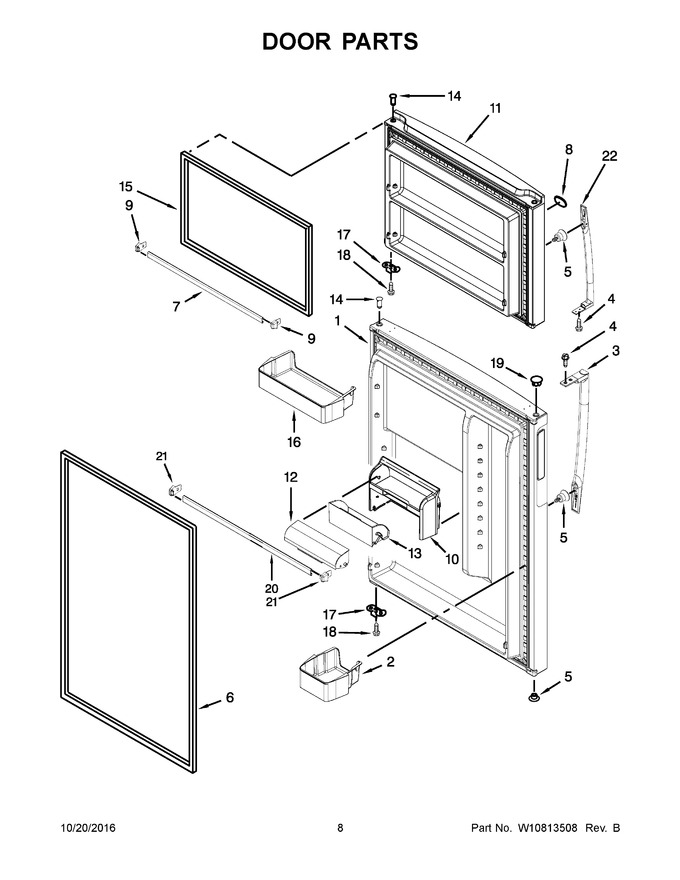

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10462676		Refrigerator Door (includes Illus. 6 & 14) (sparkle Steel)   (Replaces: W10462676)		Appelez-nous	-
2	WPW10308869		Bin, Medium   (Replaces: W10331764)			Immediately	$ 77.70
3	W10646834		Handle, Refrigerator (titanium Sparkle)		Appelez-nous	-
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
6	W10249195		Door Gasket, Magnetic (grey)   (Replaces: W10171475)				$ 335.80
7	WPW10469912		Trim, Door Shelf   (Replaces: W10469912)				$ 170.45
8	WPW10170766		Nameplate (badge)   (Replaces: W10170766)			Immediately	$ 70.50
9	W10308871		Cap, Trim End (right Hand)				$ 10.44
10	W10308809		Housing, Compartment				$ 35.60
11	LW10462681		Freezer Door (includes Illus. 14 & 15) (sparkle Steel)   (Replaces: W10462681)		Appelez-nous	-
12	WPW10308843		Lid, Utility Flip   (Replaces: W10308843)				$ 78.98
13	W10356444		Bin, Tilt Out		Appelez-nous	-
14	W11189115		Thimble, Top   (Replaces: W10334042)				$ 12.71
15	W10249196		Door Gasket, Magnetic (grey)   (Replaces: W10171479)			Immediately	$ 279.10
16	WPW10308868		Bin, Large Door   (Replaces: W10331763)			Immediately	$ 89.09
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
18	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
19	WP2254517		Hole Plug (grey)   (Replaces: 2254517)			Immediately	$ 24.34
20	WPW10469911		Trim, Door Shelf   (Replaces: W10469911)				$ 104.53
21	W10308871		Cap, Trim End (right Hand)				$ 10.44
22	W10646834		Handle, Freezer (titanium Sparkle)		Appelez-nous	-
21A	W10338485		Cap, Trim End (left Hand)				$ 10.41
9A	W10338485		Cap, Trim End (left Hand)				$ 10.41
