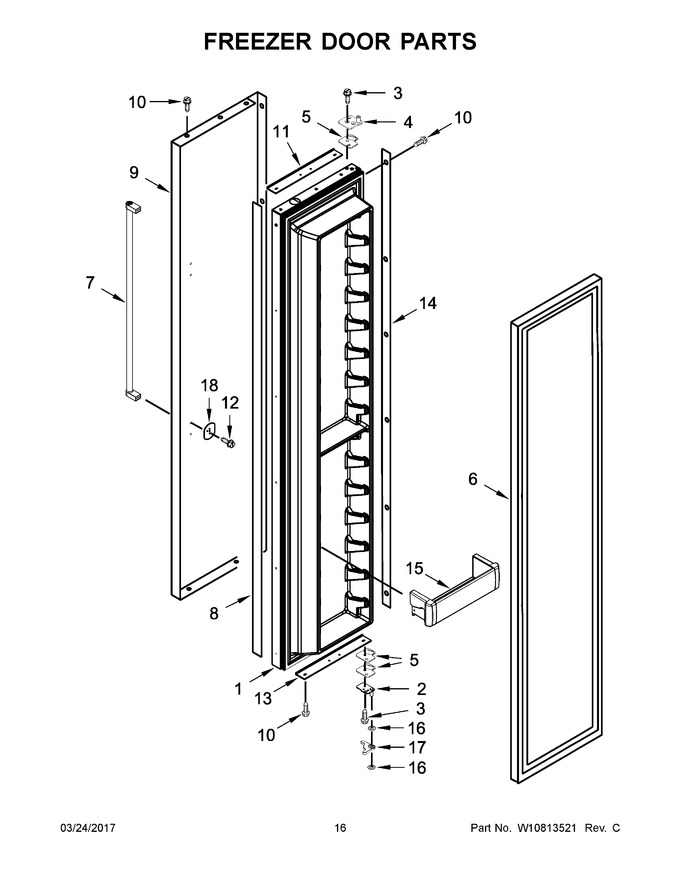

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10761959		Door, Freezer (includes Door Gasket)		Appelez-nous	-
2	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 56.76
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
4	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
5	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
6	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 349.95
7	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
8	W10758113		Spacer, Handle Side Door		Appelez-nous	-
9	W11797611		Skin, Door (black Stainless)   (Replaces: W10873386)		Appelez-nous	-
10	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.32
11	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
12	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
13	W10761935		Spacer, Door Skin (bottom)		Appelez-nous	-
14	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
15	W11590561		Bin, Shallow   (Replaces: W10323603)				$ 84.81
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
18	W10127710		Plate, Handle Door			Immediately	$ 23.35
10A	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
9A	W11797603		Skin, Door (stainless)   (Replaces: W10756228)		Appelez-nous	-
