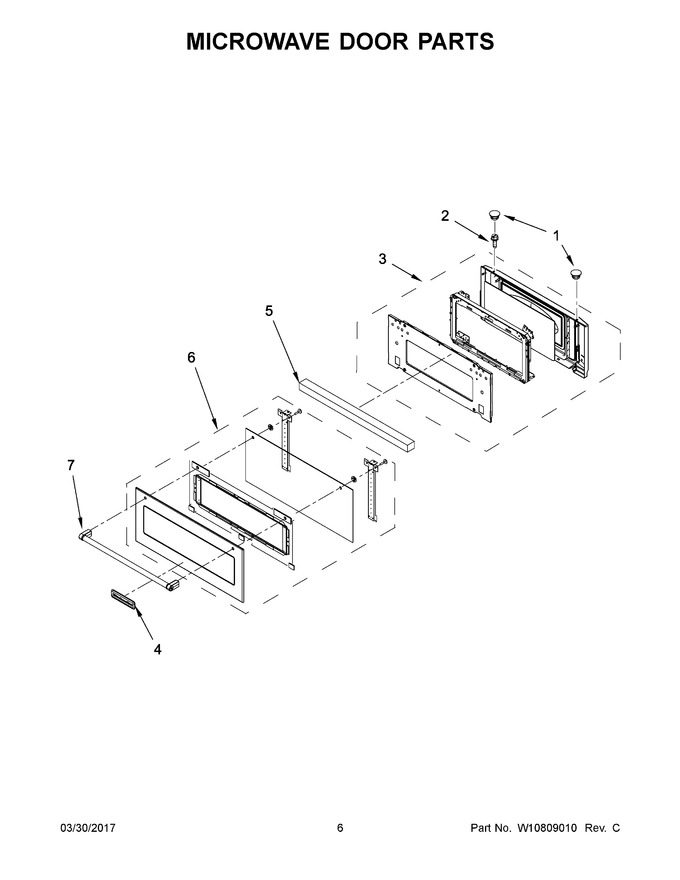

04 - Microwave Door Parts
05 - Cabinet And Stirrer Parts
06 - Internal Microwave Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 2 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 3 | W10737653 | Assembly, Inner Door |
|
$ 411.83 | |||||
| 4 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 5 | W10359769 | Foam, Door Handle |
|
$ 14.76 | |||||
| 6 | W10783078 | Assembly, Outer Door (stainless) (Replaces: W10615379) |
|
$ 400.52 | |||||
| 7 | W11525064 | Assembly, Door Handle (stainless) (Replaces: W10640874) |
|
$ 238.98 |
